SDO HMI 2011-05-27 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.86 | 82.86 | 14.84 | 42.59 | -16.06 | 113.90 | -3.85 | 166.19 | 0.2675 | -160.0 | -258.8 | |
|
previous
or next observation for the same group /

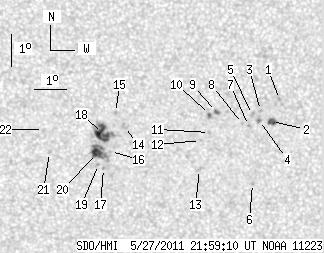

back to the solar disc SDO HMI 2011-05-27 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.55 | -14.88 | 118.31 | 0.56 | 182.31 | 0.2374 | 974.0 | 739.7 | |
| 4.51 | 4.51 | 2.31 | 2.31 | -15.57 | 118.06 | 0.31 | 181.22 | 0.2489 | 961.0 | 0.0 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -15.22 | 117.71 | -0.03 | 179.87 | 0.2430 | 835.0 | 705.5 | |
| 0.00 | 2.16 | 0.00 | 1.11 | -15.54 | 117.68 | -0.07 | 179.75 | 0.2483 | 1077.0 | 795.8 | |
| 0.00 | 2.44 | 0.00 | 1.24 | -15.35 | 117.46 | -0.29 | 178.87 | 0.2452 | 755.0 | 616.6 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -17.52 | 117.46 | -0.29 | 179.02 | 0.2819 | 673.0 | 596.4 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -15.69 | 117.33 | -0.41 | 178.41 | 0.2511 | 914.0 | 715.1 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -15.63 | 117.15 | -0.60 | 177.67 | 0.2501 | 934.0 | 700.0 | |
| 1.71 | 2.62 | 0.88 | 1.34 | -15.25 | 116.33 | -1.42 | 174.37 | 0.2447 | 937.1 | 889.2 | |
| 1.08 | 1.98 | 0.55 | 1.01 | -15.35 | 116.11 | -1.64 | 173.55 | 0.2467 | 943.8 | 868.3 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -15.91 | 116.10 | -1.64 | 173.79 | 0.2562 | 760.0 | 577.2 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -16.16 | 115.82 | -1.93 | 172.85 | 0.2610 | 769.0 | 523.4 | |
| 0.00 | 2.62 | 0.00 | 1.35 | -17.08 | 115.77 | -1.97 | 173.14 | 0.2764 | 731.0 | 608.0 | |
| 0.00 | 3.79 | 0.00 | 1.94 | -15.72 | 113.42 | -4.33 | 163.82 | 0.2619 | -750.0 | -640.3 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -15.28 | 113.14 | -4.60 | 162.33 | 0.2562 | -937.0 | -727.1 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -16.51 | 112.96 | -4.79 | 163.11 | 0.2768 | -828.0 | -597.5 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -17.04 | 112.72 | -5.03 | 162.92 | 0.2865 | -763.0 | -645.1 | |
| 14.07 | 26.88 | 7.24 | 13.82 | -15.94 | 112.72 | -5.03 | 161.65 | 0.2689 | -1131.0 | -667.2 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -16.92 | 112.56 | -5.18 | 162.29 | 0.2853 | -753.0 | -540.5 | |
| 7.49 | 20.92 | 3.86 | 10.79 | -16.57 | 112.51 | -5.24 | 161.71 | 0.2800 | -926.2 | -755.6 | |
| 0.00 | 1.71 | 0.00 | 0.89 | -16.53 | 111.01 | -6.73 | 156.96 | 0.2884 | -800.0 | -581.1 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -15.81 | 110.85 | -6.90 | 155.37 | 0.2785 | -485.0 | -400.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
