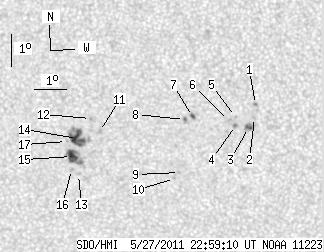

SDO HMI 2011-05-27 22:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.97 | 65.81 | 13.86 | 33.81 | -16.03 | 113.76 | -3.44 | 167.61 | 0.2653 | -254.8 | -280.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-27 22:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.78 | -14.87 | 118.33 | 1.13 | 184.63 | 0.2380 | 1038.0 | 803.5 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -15.28 | 118.30 | 1.10 | 184.38 | 0.2448 | 817.0 | 631.1 | |
| 2.44 | 3.07 | 1.25 | 1.57 | -15.59 | 118.11 | 0.92 | 183.55 | 0.2499 | 989.0 | 919.3 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -15.53 | 117.70 | 0.51 | 181.98 | 0.2485 | 1100.0 | 906.2 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -15.25 | 117.70 | 0.51 | 182.01 | 0.2437 | 833.0 | 659.3 | |
| 0.00 | 1.53 | 0.00 | 0.78 | -15.38 | 117.48 | 0.29 | 181.13 | 0.2457 | 776.0 | 633.4 | |
| 1.80 | 2.16 | 0.92 | 1.11 | -15.25 | 116.35 | -0.85 | 176.63 | 0.2440 | 945.6 | 762.5 | |
| 0.00 | 1.98 | 0.00 | 1.01 | -15.34 | 116.09 | -1.10 | 175.67 | 0.2459 | 1074.0 | 881.6 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -17.01 | 115.93 | -1.27 | 175.56 | 0.2742 | 823.0 | 694.5 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -17.20 | 115.76 | -1.43 | 175.06 | 0.2776 | 650.0 | 569.4 | |
| 0.00 | 2.44 | 0.00 | 1.25 | -15.72 | 113.41 | -3.79 | 165.76 | 0.2595 | -902.0 | -756.3 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -15.31 | 113.13 | -4.06 | 164.33 | 0.2541 | -874.0 | -741.0 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -17.07 | 112.71 | -4.48 | 164.71 | 0.2845 | -699.0 | -571.6 | |
| 14.34 | 24.08 | 7.37 | 12.37 | -15.94 | 112.71 | -4.49 | 163.52 | 0.2662 | -1106.4 | -685.6 | |
| 8.39 | 18.49 | 4.32 | 9.53 | -16.50 | 112.50 | -4.69 | 163.44 | 0.2763 | -950.7 | -818.6 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -16.91 | 112.49 | -4.70 | 163.84 | 0.2830 | -670.0 | -499.7 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -16.03 | 112.36 | -4.84 | 162.42 | 0.2695 | -655.0 | -480.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
