SDO HMI 2011-05-27 22:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 78.49 | 235.05 | 43.08 | 129.43 | 20.75 | 130.68 | 13.49 | 330.01 | 0.4355 | 7.0 | -110.1 | |
|
previous
or next observation for the same group /

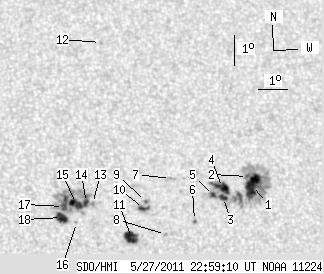

back to the solar disc SDO HMI 2011-05-27 22:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.57 | 126.46 | 10.92 | 70.47 | 21.16 | 133.44 | 16.24 | 325.52 | 0.4627 | -1050.1 | -455.8 | |
| 2.26 | -1.00 | 1.26 | -1.00 | 21.45 | 133.30 | 16.11 | 326.12 | 0.4651 | -715.7 | 999999 | |
| 3.79 | -1.00 | 2.10 | -1.00 | 20.76 | 132.41 | 15.22 | 326.68 | 0.4488 | -1154.3 | 999999 | |
| 10.19 | -1.00 | 5.66 | -1.00 | 21.08 | 132.41 | 15.22 | 327.11 | 0.4529 | -949.5 | 999999 | |
| 2.71 | -1.00 | 1.50 | -1.00 | 20.82 | 132.08 | 14.89 | 327.33 | 0.4468 | -973.4 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.79 | 20.00 | 131.37 | 14.18 | 327.50 | 0.4301 | 391.0 | 380.4 | |
| 0.00 | 3.88 | 0.00 | 2.14 | 21.37 | 130.69 | 13.50 | 330.45 | 0.4427 | -710.0 | -531.0 | |
| 0.00 | 1.26 | 0.00 | 0.69 | 19.54 | 130.36 | 13.17 | 328.75 | 0.4156 | -738.0 | -575.5 | |
| 0.36 | 7.67 | 0.20 | 4.19 | 20.61 | 129.79 | 12.60 | 331.20 | 0.4255 | 858.8 | 534.7 | |
| 3.61 | -9.00 | 1.97 | -9.00 | 20.38 | 129.70 | 12.51 | 331.08 | 0.4217 | 611.7 | 999999 | |
| 12.45 | 13.71 | 6.74 | 7.42 | 19.43 | 129.23 | 12.04 | 330.82 | 0.4051 | 919.2 | 605.7 | |
| 0.00 | 1.53 | 0.00 | 0.87 | 25.92 | 128.76 | 11.56 | 338.41 | 0.4920 | 669.0 | 477.2 | |
| 0.00 | 1.71 | 0.00 | 0.93 | 20.54 | 128.03 | 10.84 | 334.57 | 0.4117 | 706.0 | 612.3 | |
| 3.07 | 76.31 | 1.66 | 41.35 | 20.57 | 127.83 | 10.64 | 335.00 | 0.4108 | 678.9 | 391.8 | |
| 8.21 | -14.00 | 4.45 | -14.00 | 20.53 | 127.50 | 10.31 | 335.65 | 0.4081 | 971.0 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 19.91 | 127.46 | 10.27 | 335.05 | 0.3989 | 759.0 | 651.3 | |
| 3.70 | -14.00 | 2.00 | -14.00 | 20.43 | 127.06 | 9.87 | 336.45 | 0.4038 | 1088.7 | 999999 | |
| 8.57 | -14.00 | 4.62 | -14.00 | 20.07 | 126.98 | 9.78 | 336.25 | 0.3980 | 1048.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
