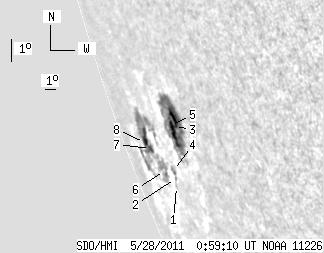

SDO HMI 2011-05-28 00:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.68 | 168.53 | 40.59 | 431.44 | -20.41 | 37.57 | -78.51 | 110.59 | 0.9810 | 300.9 | -116.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-28 00:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 4.40 | -21.89 | 37.64 | -78.45 | 112.09 | 0.9819 | 181.0 | 128.6 | |
| 0.00 | 1.17 | 0.00 | 2.92 | -21.64 | 37.98 | -78.11 | 111.85 | 0.9808 | 343.0 | 309.2 | |
| 12.27 | 84.63 | 25.15 | 175.67 | -19.99 | 40.55 | -75.53 | 110.32 | 0.9714 | 526.5 | 72.0 | |
| 0.00 | 3.43 | 0.00 | 8.42 | -21.38 | 38.15 | -77.94 | 111.59 | 0.9802 | 512.0 | 102.2 | |
| 1.71 | -3.00 | 3.62 | -3.00 | -19.95 | 40.08 | -76.01 | 110.25 | 0.9732 | -370.7 | 999999 | |
| 0.00 | 16.69 | 0.00 | 46.78 | -21.35 | 36.67 | -79.42 | 111.49 | 0.9847 | -335.0 | -418.4 | |
| 1.26 | 60.90 | 3.85 | 193.25 | -20.62 | 35.62 | -80.46 | 110.70 | 0.9874 | -487.7 | -215.1 | |
| 2.44 | -7.00 | 7.97 | -7.00 | -20.41 | 34.86 | -81.22 | 110.46 | 0.9893 | 337.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
