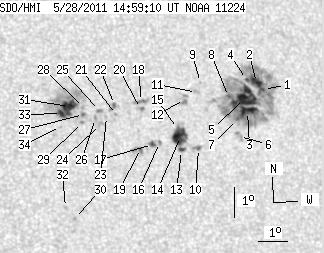

SDO HMI 2011-05-28 14:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.50 | 419.65 | 55.99 | 244.33 | 20.70 | 131.62 | 23.23 | 315.29 | 0.5251 | -54.9 | -183.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-28 14:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.99 | 256.83 | 0.59 | 151.82 | 21.28 | 134.06 | 25.66 | 313.24 | 0.5560 | -753.9 | -394.1 | |
| 6.86 | -1.00 | 4.08 | -1.00 | 21.51 | 133.85 | 25.45 | 313.78 | 0.5559 | -988.0 | 999999 | |
| 10.46 | -1.00 | 6.16 | -1.00 | 20.56 | 133.35 | 24.95 | 312.95 | 0.5418 | -1206.2 | 999999 | |
| 1.08 | -1.00 | 0.64 | -1.00 | 21.61 | 133.50 | 25.11 | 314.28 | 0.5531 | -684.9 | 999999 | |
| 27.51 | -1.00 | 16.24 | -1.00 | 20.98 | 133.32 | 24.92 | 313.60 | 0.5454 | -1065.0 | 999999 | |
| 0.00 | 5.23 | 0.00 | 3.05 | 19.74 | 132.92 | 24.53 | 312.21 | 0.5296 | -589.0 | -699.7 | |
| 1.08 | -1.00 | 0.63 | -1.00 | 20.29 | 132.94 | 24.55 | 313.01 | 0.5350 | -1036.9 | 999999 | |
| 1.62 | -1.00 | 0.95 | -1.00 | 21.04 | 132.75 | 24.36 | 314.31 | 0.5400 | -654.7 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.48 | 21.50 | 131.83 | 23.44 | 315.99 | 0.5347 | -692.0 | -513.0 | |
| 1.71 | 4.33 | 0.99 | 2.49 | 19.34 | 131.41 | 23.02 | 313.33 | 0.5093 | 630.2 | 614.2 | |
| 0.00 | 2.53 | 0.00 | 1.47 | 21.16 | 131.63 | 23.24 | 315.76 | 0.5294 | -577.0 | -534.0 | |
| 0.00 | 6.22 | 0.00 | 3.61 | 20.93 | 131.17 | 22.77 | 315.98 | 0.5223 | -911.0 | -799.2 | |
| 2.35 | 3.25 | 1.34 | 1.86 | 19.27 | 130.81 | 22.41 | 313.95 | 0.5020 | 837.3 | 774.6 | |
| 18.58 | 24.27 | 10.66 | 13.93 | 19.72 | 130.84 | 22.45 | 314.60 | 0.5068 | 849.5 | 127.0 | |
| 0.81 | -14.00 | 0.47 | -14.00 | 19.98 | 130.78 | 22.38 | 315.07 | 0.5087 | -265.8 | 999999 | |
| 0.00 | 2.53 | 0.00 | 1.44 | 19.52 | 130.08 | 21.69 | 315.24 | 0.4966 | 771.0 | 616.6 | |
| 2.26 | 3.25 | 1.28 | 1.85 | 19.45 | 129.83 | 21.43 | 315.46 | 0.4933 | 837.2 | 725.4 | |
| 0.00 | 6.22 | 0.00 | 3.57 | 20.85 | 129.65 | 21.25 | 317.76 | 0.5059 | 705.0 | 412.3 | |
| 1.62 | 6.13 | 0.92 | 3.47 | 19.32 | 129.40 | 21.00 | 315.82 | 0.4873 | 947.8 | 819.4 | |
| 0.00 | 3.07 | 0.00 | 1.76 | 20.62 | 129.58 | 21.18 | 317.52 | 0.5028 | -855.0 | -674.7 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 20.42 | 128.72 | 20.32 | 318.36 | 0.4918 | 695.0 | 581.3 | |
| 1.80 | 3.70 | 1.03 | 2.10 | 20.75 | 128.69 | 20.30 | 318.86 | 0.4951 | 788.4 | 729.9 | |
| 0.00 | 0.72 | 0.00 | 0.41 | 20.35 | 128.36 | 19.97 | 318.75 | 0.4875 | 809.0 | 629.6 | |
| 0.00 | 3.25 | 0.00 | 1.83 | 20.09 | 128.12 | 19.73 | 318.70 | 0.4822 | 678.0 | 654.9 | |
| 0.00 | 2.71 | 0.00 | 1.53 | 20.55 | 128.15 | 19.75 | 319.32 | 0.4875 | 726.0 | 617.5 | |
| 0.00 | 2.26 | 0.00 | 1.27 | 20.28 | 127.98 | 19.58 | 319.19 | 0.4829 | 1004.0 | 762.2 | |
| 0.54 | 1.35 | 0.31 | 0.76 | 20.41 | 127.58 | 19.18 | 319.93 | 0.4803 | 968.5 | 842.0 | |
| 0.00 | 1.62 | 0.00 | 0.92 | 20.64 | 127.61 | 19.21 | 320.21 | 0.4832 | 576.0 | 368.6 | |
| 0.00 | 1.62 | 0.00 | 0.91 | 20.15 | 127.51 | 19.12 | 319.65 | 0.4767 | 946.0 | 808.8 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 17.05 | 126.88 | 18.49 | 315.72 | 0.4361 | -946.0 | -767.8 | |
| 12.99 | 73.25 | 7.32 | 41.30 | 20.67 | 127.13 | 18.74 | 320.94 | 0.4789 | 1027.8 | 295.5 | |
| 0.00 | 1.80 | 0.00 | 0.99 | 17.40 | 126.62 | 18.22 | 316.71 | 0.4370 | -797.0 | -593.3 | |
| 4.24 | -31.00 | 2.38 | -31.00 | 20.44 | 126.83 | 18.43 | 321.06 | 0.4733 | 1089.0 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.35 | 20.02 | 126.74 | 18.35 | 320.57 | 0.4676 | 704.0 | 548.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
