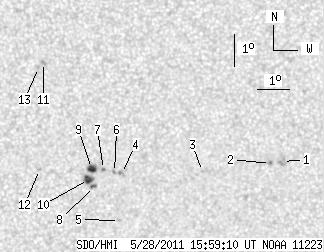

SDO HMI 2011-05-28 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.99 | 34.79 | 6.17 | 17.94 | -15.68 | 113.76 | 5.92 | 200.99 | 0.2740 | -636.0 | -239.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-28 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.23 | 0.00 | 2.73 | -15.61 | 118.65 | 10.81 | 215.80 | 0.3101 | 703.0 | 718.4 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -15.67 | 118.27 | 10.43 | 214.72 | 0.3073 | 930.0 | 807.5 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -15.93 | 116.11 | 8.26 | 208.39 | 0.2920 | 838.0 | 622.9 | |
| 0.00 | 2.89 | 0.00 | 1.49 | -16.00 | 113.53 | 5.69 | 200.36 | 0.2751 | -967.0 | -695.8 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -17.48 | 113.51 | 5.67 | 198.49 | 0.2984 | -948.0 | -749.6 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -15.97 | 113.31 | 5.47 | 199.66 | 0.2734 | -743.0 | -488.1 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -15.87 | 112.96 | 5.11 | 198.61 | 0.2699 | -884.0 | -782.4 | |
| 2.16 | 2.80 | 1.12 | 1.44 | -16.41 | 112.69 | 4.84 | 197.07 | 0.2771 | -749.3 | -791.6 | |
| 4.60 | 6.49 | 2.36 | 3.34 | -15.84 | 112.58 | 4.73 | 197.35 | 0.2674 | -1166.1 | -883.3 | |
| 5.23 | 6.13 | 2.69 | 3.16 | -16.19 | 112.49 | 4.65 | 196.66 | 0.2726 | -1066.8 | -934.8 | |
| 0.00 | 2.16 | 0.00 | 1.10 | -12.54 | 111.01 | 3.17 | 195.24 | 0.2061 | -1041.0 | -742.1 | |
| 0.00 | 1.44 | 0.00 | 0.74 | -15.88 | 110.93 | 3.09 | 191.50 | 0.2611 | -917.0 | -672.4 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -12.69 | 110.86 | 3.01 | 194.34 | 0.2080 | -794.0 | -614.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
