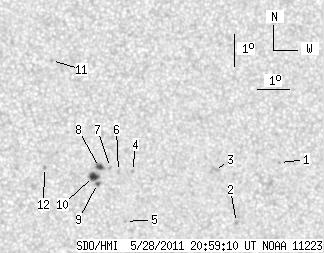

SDO HMI 2011-05-28 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.39 | 26.76 | 4.34 | 13.88 | -15.99 | 113.58 | 8.51 | 208.67 | 0.2961 | -559.4 | -198.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-28 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.47 | -15.68 | 118.41 | 13.34 | 221.38 | 0.3374 | 762.0 | 583.2 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -17.58 | 117.14 | 12.07 | 215.07 | 0.3484 | 826.0 | 660.9 | |
| 0.00 | 4.33 | 0.00 | 2.26 | -15.94 | 116.32 | 11.25 | 216.21 | 0.3190 | 680.0 | 712.1 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -15.98 | 113.69 | 8.63 | 209.31 | 0.2958 | -717.0 | -546.9 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -17.56 | 113.54 | 8.47 | 206.37 | 0.3176 | -849.0 | -695.5 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -15.98 | 113.25 | 8.18 | 208.03 | 0.2923 | -803.0 | -512.9 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -15.85 | 112.99 | 7.92 | 207.49 | 0.2884 | -851.0 | -658.2 | |
| 2.98 | 5.32 | 1.54 | 2.75 | -15.86 | 112.64 | 7.57 | 206.44 | 0.2857 | -1108.1 | -796.5 | |
| 0.45 | 1.26 | 0.23 | 0.65 | -16.36 | 112.59 | 7.52 | 205.52 | 0.2929 | -844.8 | -727.4 | |
| 4.96 | 6.22 | 2.57 | 3.22 | -16.14 | 112.46 | 7.39 | 205.45 | 0.2886 | -1015.8 | -897.9 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -12.52 | 111.02 | 5.95 | 207.08 | 0.2234 | -959.0 | -740.4 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -15.86 | 110.89 | 5.82 | 200.95 | 0.2740 | -755.0 | -591.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
