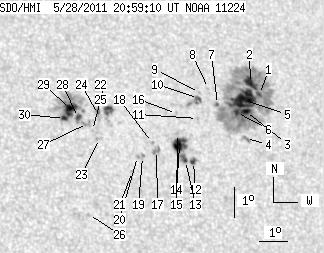

SDO HMI 2011-05-28 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 90.32 | 391.32 | 53.91 | 234.59 | 20.85 | 131.88 | 26.81 | 311.57 | 0.5644 | -103.1 | -171.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-28 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.26 | 253.23 | 1.38 | 154.17 | 21.30 | 134.01 | 28.94 | 310.05 | 0.5911 | -653.0 | -390.1 | |
| 9.20 | -1.00 | 5.64 | -1.00 | 21.66 | 133.75 | 28.68 | 310.78 | 0.5913 | -842.3 | 999999 | |
| 4.15 | -1.00 | 2.52 | -1.00 | 20.73 | 133.37 | 28.30 | 309.84 | 0.5796 | -1149.4 | 999999 | |
| 0.00 | 4.33 | 0.00 | 2.61 | 19.85 | 133.19 | 28.13 | 308.73 | 0.5705 | -432.0 | -486.1 | |
| 28.33 | -1.00 | 17.24 | -1.00 | 21.10 | 133.41 | 28.34 | 310.31 | 0.5830 | -986.2 | 999999 | |
| 2.26 | -1.00 | 1.36 | -1.00 | 20.70 | 133.03 | 27.96 | 310.10 | 0.5756 | -1235.0 | 999999 | |
| 1.08 | -1.00 | 0.65 | -1.00 | 20.95 | 132.38 | 27.32 | 311.08 | 0.5707 | -827.2 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.27 | 21.48 | 132.16 | 27.09 | 312.04 | 0.5727 | -692.0 | -562.6 | |
| 0.00 | 0.54 | 0.00 | 0.33 | 21.34 | 131.80 | 26.73 | 312.20 | 0.5678 | -620.0 | -484.8 | |
| 2.62 | 8.03 | 1.57 | 4.80 | 21.14 | 131.73 | 26.66 | 312.00 | 0.5652 | -837.9 | -839.1 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 20.49 | 131.57 | 26.50 | 311.22 | 0.5578 | -765.0 | -646.3 | |
| 2.80 | 4.96 | 1.65 | 2.92 | 19.09 | 131.17 | 26.10 | 309.55 | 0.5413 | 597.8 | 448.1 | |
| 1.53 | 23.91 | 0.90 | 14.06 | 19.12 | 130.89 | 25.82 | 309.88 | 0.5384 | 818.0 | 686.0 | |
| 14.25 | -13.00 | 8.39 | -13.00 | 19.63 | 130.76 | 25.69 | 310.79 | 0.5414 | 743.4 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.69 | 19.99 | 130.75 | 25.68 | 311.33 | 0.5445 | -416.0 | -311.9 | |
| 0.00 | 1.08 | 0.00 | 0.64 | 20.64 | 130.83 | 25.77 | 312.20 | 0.5512 | -681.0 | -597.5 | |
| 0.00 | 5.14 | 0.00 | 3.00 | 19.43 | 129.91 | 24.84 | 311.39 | 0.5301 | 917.0 | 675.2 | |
| 0.00 | 1.26 | 0.00 | 0.74 | 19.69 | 129.81 | 24.74 | 311.89 | 0.5314 | 636.0 | 559.9 | |
| 0.00 | 1.80 | 0.00 | 1.05 | 19.23 | 129.38 | 24.31 | 311.67 | 0.5224 | 1006.0 | 686.1 | |
| 0.00 | 1.35 | 0.00 | 0.78 | 19.23 | 129.20 | 24.13 | 311.87 | 0.5204 | 743.0 | 690.0 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 18.74 | 128.95 | 23.88 | 311.40 | 0.5131 | 679.0 | 558.1 | |
| 6.50 | 10.56 | 3.78 | 6.14 | 20.72 | 128.42 | 23.35 | 314.98 | 0.5261 | 717.1 | 603.4 | |
| 0.00 | 2.44 | 0.00 | 1.40 | 19.80 | 127.96 | 22.89 | 314.18 | 0.5122 | 665.0 | 644.6 | |
| 0.00 | 5.14 | 0.00 | 2.98 | 20.59 | 128.04 | 22.97 | 315.22 | 0.5208 | 892.0 | 658.3 | |
| 0.00 | 0.81 | 0.00 | 0.47 | 20.06 | 127.75 | 22.68 | 314.81 | 0.5125 | 705.0 | 556.3 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 17.35 | 127.23 | 22.16 | 311.20 | 0.4804 | -678.0 | -597.7 | |
| 0.00 | 4.42 | 0.00 | 2.55 | 20.29 | 127.61 | 22.54 | 315.31 | 0.5133 | 608.0 | 668.1 | |
| 3.07 | 4.78 | 1.77 | 2.75 | 20.48 | 127.32 | 22.25 | 315.94 | 0.5122 | 907.0 | 793.4 | |
| 9.65 | 52.41 | 5.56 | 30.21 | 20.74 | 127.08 | 22.01 | 316.62 | 0.5123 | 989.4 | 381.4 | |
| 2.62 | -29.00 | 1.50 | -29.00 | 20.45 | 126.83 | 21.76 | 316.51 | 0.5067 | 1019.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
