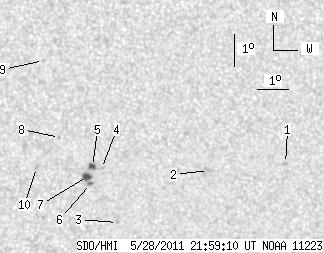

SDO HMI 2011-05-28 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.67 | 22.27 | 3.97 | 11.57 | -15.82 | 113.39 | 8.87 | 209.88 | 0.2972 | -618.4 | -266.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-28 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.08 | 0.00 | 1.10 | -15.70 | 118.86 | 14.35 | 223.36 | 0.3489 | 646.0 | 547.5 | |
| 0.00 | 2.44 | 0.00 | 1.28 | -15.93 | 116.38 | 11.86 | 217.65 | 0.3251 | 913.0 | 736.0 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -17.58 | 113.54 | 9.02 | 207.77 | 0.3222 | -848.0 | -648.2 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -15.88 | 112.94 | 8.43 | 208.92 | 0.2929 | -825.0 | -667.2 | |
| 2.89 | 3.70 | 1.49 | 1.91 | -15.82 | 112.65 | 8.14 | 208.19 | 0.2896 | -1104.4 | -924.8 | |
| 0.00 | 1.71 | 0.00 | 0.89 | -16.35 | 112.61 | 8.10 | 207.18 | 0.2972 | -880.0 | -752.5 | |
| 4.78 | 5.50 | 2.48 | 2.85 | -16.13 | 112.51 | 7.99 | 207.24 | 0.2931 | -1020.7 | -844.4 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -14.91 | 111.57 | 7.06 | 206.43 | 0.2679 | -661.0 | -529.9 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -12.51 | 111.00 | 6.48 | 209.11 | 0.2276 | -903.0 | -622.6 | |
| 0.00 | 1.89 | 0.00 | 0.98 | -15.85 | 110.87 | 6.36 | 202.70 | 0.2773 | -667.0 | -612.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
