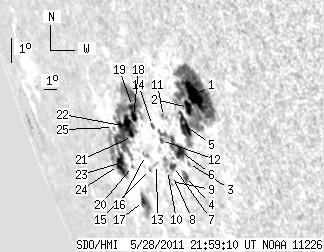

SDO HMI 2011-05-28 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 94.92 | 409.07 | 131.81 | 563.84 | -20.81 | 36.57 | -67.95 | 111.93 | 0.9340 | -12.9 | -28.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-28 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.38 | 184.87 | 25.28 | 221.45 | -19.71 | 40.54 | -63.97 | 111.26 | 0.9095 | 806.3 | 275.5 | |
| 6.86 | -1.00 | 8.34 | -1.00 | -20.08 | 39.80 | -64.71 | 111.56 | 0.9148 | 464.6 | 999999 | |
| 0.00 | 1.53 | 0.00 | 1.99 | -21.88 | 38.28 | -66.24 | 113.28 | 0.9262 | 389.0 | 341.5 | |
| 0.00 | 5.86 | 0.00 | 7.85 | -22.30 | 37.63 | -66.88 | 113.63 | 0.9304 | 517.0 | 294.6 | |
| 13.08 | -1.00 | 16.39 | -1.00 | -20.65 | 39.03 | -65.48 | 112.07 | 0.9203 | 341.9 | 999999 | |
| 8.84 | 30.68 | 11.62 | 40.90 | -21.48 | 37.98 | -66.53 | 112.81 | 0.9276 | 446.7 | -294.9 | |
| 2.44 | 9.47 | 3.35 | 13.17 | -21.96 | 36.94 | -67.58 | 113.18 | 0.9341 | 289.7 | -298.9 | |
| 0.00 | 0.72 | 0.00 | 1.01 | -22.25 | 36.56 | -67.96 | 113.43 | 0.9365 | -358.0 | -357.2 | |
| 0.00 | 3.16 | 0.00 | 4.48 | -22.44 | 36.27 | -68.24 | 113.60 | 0.9383 | -342.0 | -304.8 | |
| 0.00 | 1.17 | 0.00 | 1.66 | -22.08 | 36.29 | -68.23 | 113.22 | 0.9379 | -414.0 | -382.0 | |
| 0.00 | 3.07 | 0.00 | 4.06 | -20.34 | 37.59 | -66.92 | 111.54 | 0.9289 | -468.0 | -399.6 | |
| 1.71 | -6.00 | 2.37 | -6.00 | -21.10 | 36.72 | -67.79 | 112.24 | 0.9347 | -655.4 | 999999 | |
| 0.00 | 2.17 | 0.00 | 3.15 | -21.87 | 35.50 | -69.01 | 112.90 | 0.9421 | -559.0 | -455.8 | |
| 2.17 | 2.62 | 3.02 | 3.65 | -20.61 | 36.40 | -68.11 | 111.68 | 0.9361 | -344.4 | -328.8 | |
| 0.00 | 1.08 | 0.00 | 1.64 | -22.02 | 34.68 | -69.83 | 112.96 | 0.9465 | -442.0 | -390.3 | |
| 0.00 | 3.07 | 0.00 | 4.62 | -21.56 | 34.80 | -69.72 | 112.49 | 0.9456 | -276.0 | -261.8 | |
| 2.53 | 16.60 | 4.22 | 27.67 | -23.04 | 32.84 | -71.67 | 113.83 | 0.9562 | -443.4 | -301.6 | |
| 4.15 | 140.75 | 6.13 | 222.82 | -20.30 | 34.98 | -69.53 | 111.18 | 0.9438 | -549.0 | -219.5 | |
| 3.52 | -18.00 | 5.15 | -18.00 | -19.98 | 35.20 | -69.31 | 110.87 | 0.9424 | -566.2 | 999999 | |
| 0.00 | 1.08 | 0.00 | 1.77 | -21.89 | 33.12 | -71.39 | 112.66 | 0.9542 | -465.0 | -401.5 | |
| 0.45 | -18.00 | 0.70 | -18.00 | -20.93 | 34.22 | -70.29 | 111.77 | 0.9482 | 143.4 | 999999 | |
| 16.15 | -18.00 | 25.11 | -18.00 | -20.60 | 33.99 | -70.53 | 111.40 | 0.9492 | -749.4 | 999999 | |
| 9.29 | -18.00 | 15.99 | -18.00 | -21.75 | 32.13 | -72.39 | 112.41 | 0.9588 | -466.3 | 999999 | |
| 2.35 | -18.00 | 4.14 | -18.00 | -21.84 | 31.68 | -72.84 | 112.46 | 0.9609 | 393.7 | 999999 | |
| 0.00 | 1.17 | 0.00 | 1.95 | -20.61 | 32.65 | -71.87 | 111.28 | 0.9559 | -161.0 | -124.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
