SDO HMI 2011-05-28 22:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.86 | 22.18 | 3.56 | 11.56 | -16.16 | 113.99 | 10.03 | 212.40 | 0.3117 | -267.9 | 15.2 | |
|
previous
or next observation for the same group /

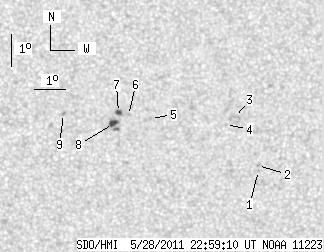

back to the solar disc SDO HMI 2011-05-28 22:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.57 | -17.62 | 117.27 | 13.31 | 217.60 | 0.3612 | 754.0 | 597.8 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -17.47 | 117.23 | 13.27 | 217.79 | 0.3588 | 768.0 | 631.5 | |
| 0.00 | 4.96 | 0.00 | 2.60 | -15.95 | 116.38 | 12.42 | 218.83 | 0.3311 | 872.0 | 645.6 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -16.18 | 116.10 | 12.14 | 217.78 | 0.3311 | 603.0 | 471.4 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -15.99 | 113.67 | 9.71 | 212.22 | 0.3055 | -703.0 | -500.8 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -15.90 | 112.96 | 9.00 | 210.48 | 0.2981 | -776.0 | -715.6 | |
| 2.62 | 3.16 | 1.36 | 1.64 | -15.81 | 112.64 | 8.68 | 209.74 | 0.2940 | -1031.3 | -1003.2 | |
| 4.24 | 7.31 | 2.20 | 3.79 | -16.16 | 112.50 | 8.54 | 208.74 | 0.2978 | -986.9 | -720.8 | |
| 0.00 | 1.62 | 0.00 | 0.84 | -15.85 | 110.89 | 6.93 | 204.50 | 0.2811 | -773.0 | -621.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
