SDO HMI 2011-05-28 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.03 | 20.38 | 4.17 | 10.65 | -16.26 | 113.58 | 10.17 | 212.65 | 0.3142 | -326.8 | -138.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-28 23:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

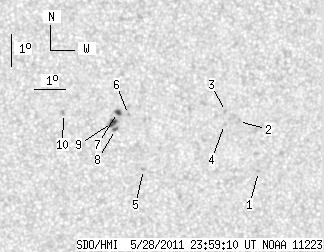

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.72 | -17.65 | 117.31 | 13.91 | 218.74 | 0.3676 | 758.0 | 551.7 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -16.07 | 116.54 | 13.14 | 220.14 | 0.3402 | 666.0 | 636.3 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -15.76 | 116.10 | 12.70 | 219.82 | 0.3317 | 832.0 | 662.4 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -16.17 | 116.10 | 12.69 | 219.00 | 0.3367 | 581.0 | 454.6 | |
| 0.00 | 1.71 | 0.00 | 0.90 | -17.60 | 113.56 | 10.15 | 210.58 | 0.3318 | -813.0 | -542.0 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -15.86 | 112.99 | 9.58 | 212.09 | 0.3026 | -843.0 | -604.9 | |
| 2.44 | 3.16 | 1.26 | 1.64 | -15.80 | 112.63 | 9.22 | 211.25 | 0.2986 | -1021.0 | -929.4 | |
| 1.17 | 7.67 | 0.61 | 3.99 | -16.34 | 112.59 | 9.19 | 210.20 | 0.3059 | -724.0 | -755.0 | |
| 4.42 | -8.00 | 2.30 | -8.00 | -16.12 | 112.49 | 9.08 | 210.29 | 0.3018 | -991.7 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.79 | -15.84 | 110.91 | 7.50 | 206.25 | 0.2853 | -822.0 | -681.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
