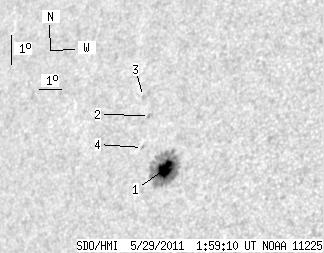

SDO HMI 2011-05-29 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.07 | 84.75 | 11.49 | 60.74 | 17.04 | 59.14 | -43.16 | 64.93 | 0.7244 | -876.0 | -344.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-29 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.07 | 80.24 | 11.49 | 57.40 | 16.94 | 59.22 | -43.08 | 65.02 | 0.7232 | -1046.2 | -366.8 | |
| 0.00 | 1.99 | 0.00 | 1.46 | 18.66 | 57.98 | -44.32 | 63.32 | 0.7431 | 407.0 | 415.8 | |
| 0.00 | 1.71 | 0.00 | 1.28 | 19.28 | 57.50 | -44.81 | 62.74 | 0.7506 | -589.0 | -392.7 | |
| 0.00 | 0.81 | 0.00 | 0.60 | 17.63 | 58.00 | -44.31 | 64.63 | 0.7390 | -490.0 | -372.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
