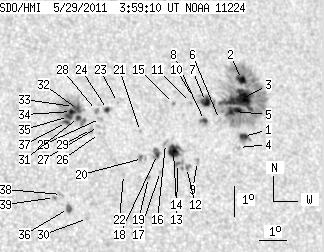

SDO HMI 2011-05-29 03:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 94.16 | 366.87 | 58.48 | 227.79 | 20.75 | 131.58 | 30.38 | 308.06 | 0.6019 | -185.8 | -59.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-29 03:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.60 | 7.94 | 2.89 | 4.98 | 20.02 | 133.26 | 32.06 | 305.59 | 0.6155 | -746.5 | -370.0 | |
| 5.87 | 222.26 | 3.75 | 140.92 | 21.89 | 133.64 | 32.44 | 307.88 | 0.6328 | -819.6 | -339.0 | |
| 34.76 | -2.00 | 22.03 | -2.00 | 21.23 | 133.43 | 32.23 | 307.14 | 0.6259 | -866.9 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.84 | 19.66 | 132.99 | 31.79 | 305.29 | 0.6100 | 425.0 | 198.0 | |
| 8.85 | -2.00 | 5.57 | -2.00 | 20.83 | 133.07 | 31.87 | 306.88 | 0.6191 | -1055.3 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.18 | 20.56 | 132.47 | 31.27 | 306.98 | 0.6106 | -645.0 | -512.3 | |
| 7.31 | -2.00 | 4.57 | -2.00 | 21.15 | 132.07 | 30.87 | 308.12 | 0.6105 | -967.5 | 999999 | |
| 2.26 | 4.88 | 1.40 | 3.02 | 20.53 | 131.89 | 30.69 | 307.40 | 0.6039 | -884.8 | -657.4 | |
| 0.00 | 3.25 | 0.00 | 1.99 | 19.19 | 131.35 | 30.14 | 305.93 | 0.5879 | 519.0 | 431.6 | |
| 0.00 | 0.72 | 0.00 | 0.45 | 21.28 | 131.65 | 30.45 | 308.65 | 0.6068 | -757.0 | -629.5 | |
| 0.00 | 1.35 | 0.00 | 0.84 | 21.11 | 131.50 | 30.29 | 308.55 | 0.6039 | -886.0 | -742.3 | |
| 0.36 | 3.61 | 0.22 | 2.20 | 18.99 | 130.90 | 29.70 | 306.01 | 0.5813 | 700.8 | 520.2 | |
| 1.53 | 5.78 | 0.93 | 3.51 | 19.11 | 130.59 | 29.39 | 306.46 | 0.5786 | 760.6 | 672.4 | |
| 10.56 | 15.17 | 6.42 | 9.22 | 19.50 | 130.52 | 29.32 | 307.09 | 0.5808 | 807.8 | 339.2 | |
| 0.00 | 1.35 | 0.00 | 0.83 | 21.07 | 130.85 | 29.65 | 309.05 | 0.5965 | -690.0 | -586.1 | |
| 0.00 | 3.16 | 0.00 | 1.92 | 19.76 | 130.27 | 29.07 | 307.68 | 0.5800 | 481.0 | 329.1 | |
| 0.00 | 1.72 | 0.00 | 1.03 | 18.85 | 129.91 | 28.71 | 306.66 | 0.5688 | 782.0 | 613.1 | |
| 2.71 | 6.86 | 1.63 | 4.14 | 19.40 | 129.91 | 28.70 | 307.48 | 0.5730 | 772.1 | 688.7 | |
| 0.00 | 1.63 | 0.00 | 0.97 | 18.65 | 129.44 | 28.23 | 306.78 | 0.5618 | 757.0 | 616.1 | |
| 0.00 | 4.15 | 0.00 | 2.49 | 19.26 | 129.33 | 28.13 | 307.80 | 0.5654 | 830.0 | 699.3 | |
| 0.00 | 0.90 | 0.00 | 0.54 | 20.14 | 129.43 | 28.23 | 309.00 | 0.5735 | 634.0 | 466.7 | |
| 0.00 | 1.35 | 0.00 | 0.80 | 18.74 | 128.54 | 27.34 | 307.74 | 0.5522 | 741.0 | 564.4 | |
| 0.00 | 1.08 | 0.00 | 0.65 | 21.08 | 128.77 | 27.57 | 310.97 | 0.5740 | 628.0 | 517.5 | |
| 2.53 | 3.25 | 1.52 | 1.95 | 20.85 | 128.36 | 27.15 | 311.04 | 0.5676 | 729.1 | 500.4 | |
| 0.00 | 1.90 | 0.00 | 1.13 | 20.55 | 128.04 | 26.84 | 310.92 | 0.5616 | 782.0 | 604.8 | |
| 0.00 | 1.08 | 0.00 | 0.64 | 20.06 | 127.91 | 26.71 | 310.33 | 0.5560 | 748.0 | 616.3 | |
| 0.00 | 2.35 | 0.00 | 1.40 | 20.29 | 127.92 | 26.72 | 310.66 | 0.5580 | 557.0 | 414.1 | |
| 0.00 | 2.35 | 0.00 | 1.40 | 20.81 | 127.95 | 26.75 | 311.39 | 0.5628 | 734.0 | 624.8 | |
| 0.00 | 2.98 | 0.00 | 1.77 | 20.19 | 127.65 | 26.45 | 310.78 | 0.5541 | 804.0 | 684.6 | |
| 0.00 | 1.17 | 0.00 | 0.68 | 17.31 | 127.02 | 25.82 | 307.00 | 0.5227 | -767.0 | -599.3 | |
| 1.90 | 52.72 | 1.13 | 31.28 | 20.58 | 127.25 | 26.05 | 311.75 | 0.5532 | 919.8 | 529.1 | |
| 1.17 | -31.00 | 0.70 | -31.00 | 20.84 | 127.26 | 26.06 | 312.12 | 0.5556 | 814.9 | 999999 | |
| 0.90 | -31.00 | 0.54 | -31.00 | 20.94 | 127.14 | 25.93 | 312.39 | 0.5551 | 760.1 | 999999 | |
| 1.99 | -31.00 | 1.18 | -31.00 | 20.77 | 127.03 | 25.83 | 312.26 | 0.5525 | 1063.4 | 999999 | |
| 0.63 | -31.00 | 0.37 | -31.00 | 20.61 | 126.89 | 25.69 | 312.16 | 0.5496 | 1171.3 | 999999 | |
| 3.79 | 4.69 | 2.19 | 2.72 | 17.62 | 126.40 | 25.20 | 308.14 | 0.5179 | -785.0 | -329.6 | |
| 2.44 | -31.00 | 1.44 | -31.00 | 20.41 | 126.79 | 25.58 | 311.99 | 0.5466 | 921.7 | 999999 | |
| 0.00 | 2.44 | 0.00 | 1.41 | 18.07 | 126.22 | 25.02 | 309.04 | 0.5197 | 589.0 | 437.7 | |
| 0.00 | 1.53 | 0.00 | 0.89 | 17.97 | 125.96 | 24.76 | 309.17 | 0.5158 | 857.0 | 675.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
