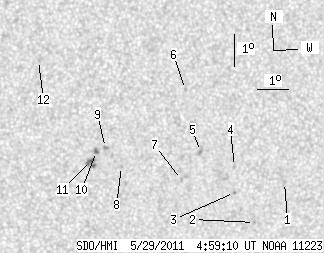

SDO HMI 2011-05-29 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.53 | 23.90 | 0.81 | 12.63 | -15.90 | 114.41 | 13.75 | 221.41 | 0.3459 | 107.3 | -120.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-29 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.44 | -16.73 | 118.95 | 18.29 | 227.95 | 0.4065 | 763.0 | 566.3 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -18.00 | 118.07 | 17.42 | 224.24 | 0.4098 | 818.0 | 550.1 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -17.05 | 117.31 | 16.66 | 224.75 | 0.3909 | 900.0 | 798.1 | |
| 0.00 | 1.44 | 0.00 | 0.77 | -16.23 | 117.24 | 16.59 | 226.22 | 0.3812 | 751.0 | 563.9 | |
| 0.00 | 3.16 | 0.00 | 1.68 | -15.77 | 116.08 | 15.43 | 225.15 | 0.3627 | 943.0 | 702.7 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -13.83 | 115.46 | 14.80 | 228.20 | 0.3342 | 817.0 | 571.7 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -16.65 | 115.53 | 14.88 | 222.38 | 0.3665 | 817.0 | 653.8 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -16.25 | 113.54 | 12.89 | 219.19 | 0.3403 | -854.0 | -637.1 | |
| 0.00 | 2.08 | 0.00 | 1.09 | -15.66 | 112.98 | 12.33 | 219.15 | 0.3271 | -1015.0 | -773.1 | |
| 0.45 | 2.26 | 0.24 | 1.18 | -15.78 | 112.70 | 12.05 | 218.26 | 0.3258 | -1152.2 | -935.2 | |
| 1.08 | 6.68 | 0.57 | 3.50 | -16.07 | 112.56 | 11.90 | 217.38 | 0.3279 | -1060.7 | -845.8 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -12.95 | 110.71 | 10.05 | 219.49 | 0.2687 | -639.0 | -630.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
