SDO HMI 2011-05-29 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.06 | 12.20 | 4.60 | 13.65 | 15.70 | 159.69 | 62.32 | 288.10 | 0.8986 | 39.0 | 53.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-29 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

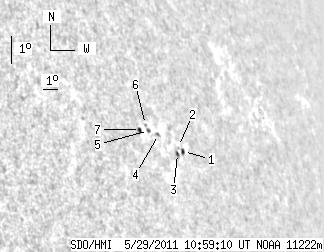

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.99 | 2.53 | 2.32 | 2.95 | 15.36 | 160.94 | 63.58 | 287.51 | 0.9073 | -266.4 | -284.3 | |
| 0.00 | 0.36 | 0.00 | 0.42 | 15.52 | 160.67 | 63.31 | 287.72 | 0.9055 | -463.0 | -468.5 | |
| 0.72 | 2.44 | 0.83 | 2.80 | 15.29 | 160.48 | 63.11 | 287.51 | 0.9039 | -389.0 | -323.1 | |
| 0.00 | 1.81 | 0.00 | 2.01 | 15.88 | 159.48 | 62.11 | 288.32 | 0.8974 | 281.0 | 184.6 | |
| 0.00 | 1.72 | 0.00 | 1.87 | 15.99 | 158.87 | 61.50 | 288.56 | 0.8930 | 348.0 | 188.1 | |
| 0.00 | 1.08 | 0.00 | 1.18 | 16.18 | 158.77 | 61.40 | 288.78 | 0.8925 | 455.0 | 382.5 | |
| 1.35 | 2.26 | 1.45 | 2.42 | 16.02 | 158.35 | 60.98 | 288.68 | 0.8891 | 451.7 | 331.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
