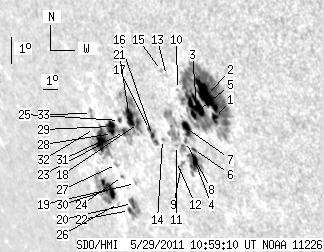

SDO HMI 2011-05-29 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 135.03 | 508.65 | 146.86 | 542.22 | -20.68 | 36.75 | -60.62 | 112.97 | 0.8857 | 6.5 | 68.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-29 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.51 | 225.14 | 4.32 | 216.65 | -20.38 | 40.39 | -56.97 | 113.34 | 0.8580 | 612.3 | 329.3 | |
| 27.26 | -1.00 | 26.08 | -1.00 | -19.64 | 40.34 | -57.03 | 112.48 | 0.8572 | 907.1 | 999999 | |
| 16.43 | -1.00 | 16.07 | -1.00 | -19.95 | 39.56 | -57.81 | 112.67 | 0.8641 | 578.4 | 999999 | |
| 4.78 | 22.39 | 4.89 | 22.93 | -21.69 | 38.35 | -59.02 | 114.38 | 0.8766 | 621.7 | 243.9 | |
| 2.44 | -1.00 | 2.41 | -1.00 | -20.23 | 39.20 | -58.16 | 112.92 | 0.8674 | 293.9 | 999999 | |
| 1.72 | 2.62 | 1.74 | 2.65 | -21.36 | 38.50 | -58.87 | 114.04 | 0.8749 | 577.4 | 518.5 | |
| 10.20 | 50.55 | 10.31 | 51.95 | -20.68 | 38.49 | -58.88 | 113.28 | 0.8738 | 563.6 | -129.6 | |
| 1.26 | -7.00 | 1.29 | -7.00 | -21.10 | 38.16 | -59.21 | 113.68 | 0.8770 | 428.2 | 999999 | |
| 0.00 | 4.24 | 0.00 | 4.46 | -21.84 | 37.40 | -59.97 | 114.35 | 0.8840 | 122.0 | 18.9 | |
| 0.00 | 0.99 | 0.00 | 0.99 | -19.42 | 38.69 | -58.68 | 111.89 | 0.8703 | 93.0 | 62.5 | |
| 0.00 | 1.35 | 0.00 | 1.42 | -21.22 | 37.50 | -59.87 | 113.68 | 0.8823 | -453.0 | -404.2 | |
| 0.00 | 1.17 | 0.00 | 1.24 | -21.73 | 37.14 | -60.23 | 114.18 | 0.8857 | -334.0 | -295.3 | |
| 0.00 | 0.45 | 0.00 | 0.46 | -18.97 | 38.26 | -59.10 | 111.30 | 0.8730 | 267.0 | 236.6 | |
| 0.00 | 1.17 | 0.00 | 1.25 | -21.01 | 36.71 | -60.66 | 113.30 | 0.8879 | -658.0 | -579.0 | |
| 0.00 | 1.62 | 0.00 | 1.65 | -18.80 | 38.04 | -59.32 | 111.07 | 0.8745 | 260.0 | 198.9 | |
| 1.72 | 10.02 | 1.86 | 10.88 | -20.87 | 36.13 | -61.24 | 113.04 | 0.8919 | -483.2 | -584.0 | |
| 1.53 | -16.00 | 1.67 | -16.00 | -20.68 | 36.06 | -61.30 | 112.81 | 0.8921 | -540.5 | 999999 | |
| 3.61 | 119.52 | 4.00 | 140.25 | -20.47 | 35.45 | -61.92 | 112.47 | 0.8963 | -699.7 | -249.0 | |
| 0.00 | 1.53 | 0.00 | 1.82 | -22.41 | 33.74 | -63.63 | 114.29 | 0.9105 | -558.0 | -521.3 | |
| 4.60 | 17.96 | 5.64 | 22.09 | -23.05 | 32.95 | -64.42 | 114.86 | 0.9164 | -657.8 | -292.6 | |
| 10.47 | -18.00 | 11.77 | -18.00 | -20.27 | 34.96 | -62.41 | 112.17 | 0.8995 | -579.4 | 999999 | |
| 1.81 | -20.00 | 2.25 | -20.00 | -23.28 | 32.51 | -64.85 | 115.03 | 0.9194 | -171.6 | 999999 | |
| 2.17 | -18.00 | 2.50 | -18.00 | -20.72 | 34.28 | -63.09 | 112.54 | 0.9048 | -528.2 | 999999 | |
| 0.00 | 1.26 | 0.00 | 1.54 | -22.17 | 32.96 | -64.41 | 113.90 | 0.9153 | -395.0 | -453.9 | |
| 1.90 | 2.44 | 2.19 | 2.81 | -20.36 | 34.18 | -63.19 | 112.13 | 0.9051 | -245.9 | -279.3 | |
| 0.00 | 1.26 | 0.00 | 1.61 | -23.04 | 31.86 | -65.50 | 114.66 | 0.9231 | -490.0 | -373.3 | |
| 0.00 | 2.08 | 0.00 | 2.54 | -21.77 | 32.84 | -64.53 | 113.46 | 0.9156 | -630.0 | -530.0 | |
| 1.35 | -18.00 | 1.61 | -18.00 | -20.77 | 33.35 | -64.01 | 112.45 | 0.9111 | 293.9 | 999999 | |
| 7.94 | -18.00 | 9.44 | -18.00 | -20.54 | 33.38 | -63.99 | 112.21 | 0.9107 | -648.2 | 999999 | |
| 11.55 | 36.65 | 14.87 | 47.78 | -22.57 | 31.57 | -65.80 | 114.12 | 0.9244 | -486.3 | 252.4 | |
| 17.78 | -18.00 | 21.95 | -18.00 | -20.98 | 32.42 | -64.95 | 112.54 | 0.9175 | -566.8 | 999999 | |
| 0.00 | 0.90 | 0.00 | 1.12 | -20.59 | 32.12 | -65.25 | 112.07 | 0.9190 | 112.0 | 54.2 | |
| 0.00 | 3.34 | 0.00 | 4.13 | -20.10 | 32.28 | -65.09 | 111.57 | 0.9175 | -322.0 | -198.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
