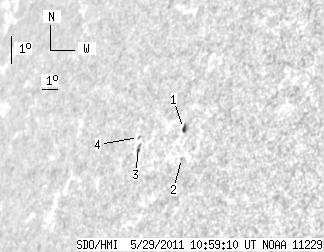

SDO HMI 2011-05-29 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.26 | 7.85 | 2.24 | 8.06 | 16.40 | 37.94 | -59.43 | 70.59 | 0.8775 | -134.4 | 28.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-29 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.26 | 3.52 | 2.24 | 3.49 | 16.73 | 39.14 | -58.23 | 69.97 | 0.8685 | -334.6 | -285.0 | |
| 0.00 | 0.72 | 0.00 | 0.71 | 15.77 | 39.47 | -57.90 | 70.99 | 0.8642 | -479.0 | -416.2 | |
| 0.00 | 2.89 | 0.00 | 3.08 | 16.14 | 36.61 | -60.76 | 71.15 | 0.8876 | 303.0 | 216.5 | |
| 0.00 | 0.72 | 0.00 | 0.78 | 16.49 | 36.42 | -60.95 | 70.79 | 0.8895 | 221.0 | 195.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
