SDO HMI 2011-05-29 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.54 | 31.50 | 14.61 | 36.89 | 15.53 | 159.31 | 63.60 | 287.69 | 0.9075 | 67.4 | -143.7 | |
|
previous
or next observation for the same group /

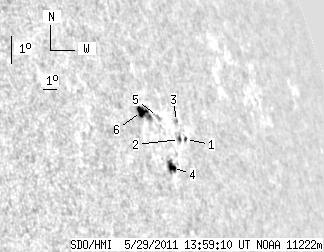

back to the solar disc SDO HMI 2011-05-29 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.99 | 1.62 | 1.24 | 2.02 | 15.33 | 161.04 | 65.33 | 287.21 | 0.9191 | -139.5 | -154.4 | |
| 1.26 | 2.80 | 1.55 | 3.43 | 15.32 | 160.58 | 64.87 | 287.26 | 0.9161 | -393.0 | -440.2 | |
| 0.00 | 2.44 | 0.00 | 3.00 | 15.89 | 160.70 | 64.99 | 287.87 | 0.9174 | -327.0 | -305.3 | |
| 3.70 | 8.66 | 4.34 | 10.14 | 14.42 | 159.57 | 63.85 | 286.44 | 0.9082 | -453.5 | -468.4 | |
| 0.00 | 2.80 | 0.00 | 3.29 | 16.03 | 159.38 | 63.67 | 288.22 | 0.9086 | -145.0 | -89.8 | |
| 6.59 | 13.18 | 7.48 | 15.01 | 16.17 | 158.33 | 62.62 | 288.55 | 0.9014 | 580.5 | 222.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
