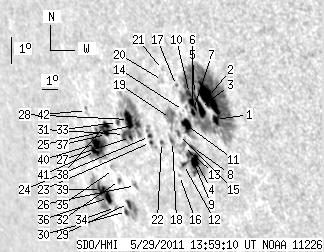

SDO HMI 2011-05-29 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 119.91 | 543.31 | 121.74 | 550.74 | -20.67 | 36.73 | -58.99 | 113.28 | 0.8734 | 111.7 | 52.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-29 13:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.87 | 262.45 | 4.49 | 242.97 | -20.36 | 40.30 | -55.42 | 113.68 | 0.8449 | 640.3 | 345.1 | |
| 26.44 | -1.00 | 24.29 | -1.00 | -19.65 | 40.22 | -55.50 | 112.84 | 0.8442 | 940.2 | 999999 | |
| 8.66 | -1.00 | 8.09 | -1.00 | -19.97 | 39.65 | -56.07 | 113.07 | 0.8497 | 619.7 | 999999 | |
| 7.13 | 30.78 | 6.97 | 30.15 | -21.67 | 38.35 | -57.36 | 114.73 | 0.8636 | 640.3 | 276.3 | |
| 1.08 | -1.00 | 1.01 | -1.00 | -19.55 | 39.52 | -56.19 | 112.56 | 0.8500 | 459.0 | 999999 | |
| 4.78 | -1.00 | 4.51 | -1.00 | -19.87 | 39.23 | -56.48 | 112.86 | 0.8530 | 422.8 | 999999 | |
| 1.99 | -1.00 | 1.88 | -1.00 | -20.12 | 39.09 | -56.63 | 113.13 | 0.8547 | 318.5 | 999999 | |
| 2.08 | 3.16 | 2.02 | 3.07 | -21.25 | 38.43 | -57.29 | 114.27 | 0.8622 | 528.0 | 537.7 | |
| 1.35 | -4.00 | 1.33 | -4.00 | -21.47 | 38.17 | -57.55 | 114.46 | 0.8647 | 432.9 | 999999 | |
| 1.44 | -1.00 | 1.36 | -1.00 | -19.51 | 39.25 | -56.47 | 112.46 | 0.8522 | 288.1 | 999999 | |
| 10.20 | -1.00 | 9.85 | -1.00 | -20.53 | 38.49 | -57.22 | 113.47 | 0.8604 | 555.4 | 999999 | |
| 1.17 | -4.00 | 1.17 | -4.00 | -21.79 | 37.53 | -58.18 | 114.68 | 0.8703 | 170.8 | 999999 | |
| 0.00 | 6.05 | 0.00 | 5.96 | -21.21 | 37.90 | -57.81 | 114.10 | 0.8663 | 227.0 | 135.4 | |
| 0.00 | 0.72 | 0.00 | 0.69 | -20.05 | 38.59 | -57.12 | 112.94 | 0.8587 | 107.0 | 85.9 | |
| 1.08 | 2.98 | 1.06 | 2.93 | -20.82 | 37.90 | -57.82 | 113.66 | 0.8657 | 133.3 | -43.0 | |
| 0.00 | 0.99 | 0.00 | 1.01 | -22.14 | 37.05 | -58.67 | 114.97 | 0.8747 | 222.0 | 95.6 | |
| 0.00 | 1.17 | 0.00 | 1.12 | -19.25 | 38.62 | -57.09 | 112.02 | 0.8570 | 197.0 | 85.5 | |
| 0.00 | 6.41 | 0.00 | 6.41 | -21.04 | 37.33 | -58.39 | 113.79 | 0.8706 | -387.0 | -351.5 | |
| 0.00 | 17.15 | 0.00 | 16.91 | -20.30 | 37.66 | -58.06 | 113.02 | 0.8667 | -242.0 | -224.6 | |
| 0.00 | 1.44 | 0.00 | 1.41 | -19.07 | 37.87 | -57.84 | 111.67 | 0.8630 | -215.0 | -148.1 | |
| 0.00 | 1.26 | 0.00 | 1.22 | -18.72 | 38.06 | -57.65 | 111.31 | 0.8608 | 268.0 | 217.5 | |
| 1.35 | 2.80 | 1.38 | 2.86 | -21.06 | 36.62 | -59.10 | 113.66 | 0.8762 | -607.1 | -590.6 | |
| 1.17 | 4.15 | 1.22 | 4.31 | -21.05 | 35.91 | -59.80 | 113.51 | 0.8815 | -541.5 | -536.7 | |
| 1.71 | 6.41 | 1.78 | 6.64 | -20.86 | 35.98 | -59.74 | 113.31 | 0.8808 | -568.1 | -534.2 | |
| 2.53 | 65.70 | 2.66 | 69.94 | -20.46 | 35.45 | -60.26 | 112.76 | 0.8841 | -754.4 | -378.7 | |
| 0.00 | 2.62 | 0.00 | 2.93 | -22.43 | 33.91 | -61.81 | 114.65 | 0.8982 | -657.0 | -548.4 | |
| 0.99 | -25.00 | 1.07 | -25.00 | -20.87 | 34.71 | -61.01 | 113.08 | 0.8903 | -243.3 | 999999 | |
| 10.11 | -25.00 | 10.79 | -25.00 | -20.29 | 34.97 | -60.75 | 112.48 | 0.8875 | -606.1 | 999999 | |
| 3.16 | 18.14 | 3.66 | 21.01 | -23.01 | 32.94 | -62.77 | 115.10 | 0.9056 | -649.6 | -400.5 | |
| 1.62 | -29.00 | 1.91 | -29.00 | -23.27 | 32.58 | -63.14 | 115.31 | 0.9084 | -153.8 | 999999 | |
| 0.81 | -25.00 | 0.89 | -25.00 | -20.77 | 34.37 | -61.35 | 112.90 | 0.8926 | -663.2 | 999999 | |
| 1.90 | 2.35 | 2.19 | 2.71 | -22.25 | 32.91 | -62.81 | 114.27 | 0.9048 | -434.2 | -540.6 | |
| 1.90 | 2.44 | 2.07 | 2.67 | -20.38 | 34.16 | -61.55 | 112.43 | 0.8936 | -213.5 | -223.5 | |
| 0.00 | 1.26 | 0.00 | 1.52 | -23.12 | 31.88 | -63.84 | 115.04 | 0.9128 | -519.0 | -417.4 | |
| 0.00 | 1.80 | 0.00 | 2.09 | -21.89 | 32.76 | -62.96 | 113.85 | 0.9054 | -622.0 | -508.0 | |
| 4.33 | 37.90 | 5.24 | 46.54 | -22.79 | 31.64 | -64.08 | 114.63 | 0.9139 | -547.8 | 166.1 | |
| 0.90 | 60.29 | 1.02 | 70.31 | -20.75 | 33.13 | -62.59 | 112.67 | 0.9014 | 332.7 | -233.2 | |
| 4.42 | -37.00 | 5.00 | -37.00 | -20.46 | 33.20 | -62.52 | 112.36 | 0.9006 | -674.9 | 999999 | |
| 4.15 | -36.00 | 5.06 | -36.00 | -22.52 | 31.33 | -64.38 | 114.30 | 0.9155 | -503.4 | 999999 | |
| 4.06 | -37.00 | 4.77 | -37.00 | -21.03 | 32.19 | -63.53 | 112.82 | 0.9082 | -630.8 | 999999 | |
| 2.53 | -37.00 | 3.00 | -37.00 | -21.29 | 31.91 | -63.80 | 113.05 | 0.9103 | -581.8 | 999999 | |
| 0.00 | 2.89 | 0.00 | 3.36 | -19.96 | 32.26 | -63.45 | 111.66 | 0.9065 | -264.0 | -195.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
