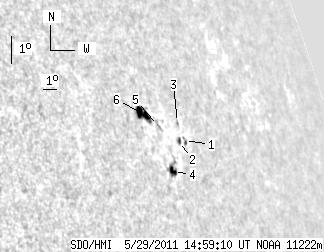

SDO HMI 2011-05-29 14:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.88 | 35.64 | 18.75 | 42.60 | 15.58 | 159.31 | 64.14 | 287.66 | 0.9113 | 87.8 | -174.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-29 14:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.16 | 0.00 | 4.03 | 15.40 | 161.06 | 65.90 | 287.20 | 0.9229 | -307.0 | -200.8 | |
| 1.80 | 2.08 | 2.27 | 2.60 | 15.36 | 160.65 | 65.49 | 287.22 | 0.9202 | -433.5 | -329.0 | |
| 0.00 | 1.53 | 0.00 | 1.95 | 15.97 | 160.88 | 65.71 | 287.84 | 0.9222 | -294.0 | -278.6 | |
| 3.88 | 8.93 | 4.66 | 10.71 | 14.40 | 159.65 | 64.48 | 286.32 | 0.9125 | -539.7 | -493.8 | |
| 0.00 | 3.97 | 0.00 | 4.75 | 15.85 | 159.37 | 64.20 | 287.94 | 0.9121 | -183.0 | -214.2 | |
| 10.20 | 15.97 | 11.82 | 18.56 | 16.21 | 158.36 | 63.19 | 288.50 | 0.9055 | 523.9 | 194.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
