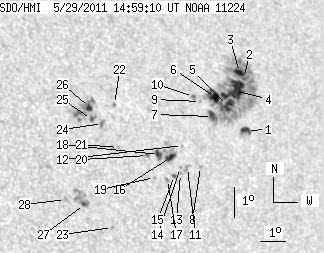

SDO HMI 2011-05-29 14:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.33 | 310.14 | 51.75 | 206.65 | 20.77 | 131.60 | 36.43 | 303.56 | 0.6678 | -327.1 | -130.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-29 14:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.41 | 8.75 | 3.66 | 5.92 | 20.19 | 133.32 | 38.16 | 301.69 | 0.6838 | -783.9 | -536.5 | |
| 1.08 | 205.48 | 0.75 | 140.03 | 21.89 | 133.72 | 38.56 | 303.69 | 0.6974 | -569.1 | -316.9 | |
| 4.96 | -2.00 | 3.42 | -2.00 | 22.09 | 133.62 | 38.45 | 304.01 | 0.6974 | -783.4 | 999999 | |
| 24.19 | -2.00 | 16.50 | -2.00 | 21.49 | 133.22 | 38.05 | 303.47 | 0.6899 | -841.1 | 999999 | |
| 11.19 | -2.00 | 7.56 | -2.00 | 21.00 | 132.78 | 37.61 | 303.08 | 0.6824 | -906.3 | 999999 | |
| 5.78 | -2.00 | 3.89 | -2.00 | 21.25 | 132.36 | 37.20 | 303.68 | 0.6794 | -1072.6 | 999999 | |
| 5.96 | -2.00 | 3.98 | -2.00 | 20.63 | 132.06 | 36.89 | 303.04 | 0.6725 | -839.7 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.88 | 18.99 | 131.14 | 35.97 | 301.38 | 0.6529 | 572.0 | 419.6 | |
| 0.00 | 1.26 | 0.00 | 0.84 | 21.11 | 131.71 | 36.54 | 303.91 | 0.6715 | -850.0 | -755.6 | |
| 1.35 | 2.26 | 0.90 | 1.50 | 21.28 | 131.47 | 36.31 | 304.27 | 0.6700 | -721.9 | -802.2 | |
| 0.00 | 3.52 | 0.00 | 2.28 | 18.95 | 130.61 | 35.45 | 301.66 | 0.6467 | 525.0 | 467.8 | |
| 0.00 | 1.08 | 0.00 | 0.70 | 19.67 | 130.59 | 35.43 | 302.66 | 0.6507 | 484.0 | 340.5 | |
| 0.00 | 1.17 | 0.00 | 0.76 | 18.76 | 130.29 | 35.12 | 301.60 | 0.6418 | 637.0 | 552.7 | |
| 0.00 | 0.63 | 0.00 | 0.41 | 18.95 | 130.33 | 35.17 | 301.84 | 0.6435 | 642.0 | 629.0 | |
| 1.35 | 1.62 | 0.87 | 1.04 | 18.69 | 130.04 | 34.87 | 301.66 | 0.6386 | 739.0 | 720.7 | |
| 5.23 | 20.94 | 3.37 | 13.49 | 19.27 | 130.02 | 34.85 | 302.49 | 0.6419 | 678.2 | 106.6 | |
| 0.00 | 2.08 | 0.00 | 1.33 | 18.56 | 129.73 | 34.57 | 301.68 | 0.6343 | 826.0 | 716.3 | |
| 4.33 | -16.00 | 2.78 | -16.00 | 19.36 | 129.57 | 34.41 | 302.92 | 0.6373 | 682.7 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.75 | 18.62 | 129.24 | 34.07 | 302.09 | 0.6290 | 777.0 | 668.5 | |
| 0.00 | 2.53 | 0.00 | 1.61 | 19.33 | 129.13 | 33.97 | 303.17 | 0.6321 | 869.0 | 655.4 | |
| 0.00 | 1.17 | 0.00 | 0.74 | 19.57 | 128.07 | 32.90 | 304.28 | 0.6217 | 659.0 | 558.1 | |
| 0.00 | 1.08 | 0.00 | 0.69 | 20.98 | 128.25 | 33.09 | 306.10 | 0.6331 | 692.0 | 639.2 | |
| 0.00 | 0.99 | 0.00 | 0.61 | 16.99 | 127.29 | 32.13 | 301.06 | 0.5960 | -756.0 | -644.0 | |
| 0.00 | 3.16 | 0.00 | 1.99 | 20.35 | 127.63 | 32.47 | 305.69 | 0.6220 | 851.0 | 694.2 | |
| 1.90 | 31.31 | 1.19 | 19.70 | 20.48 | 127.24 | 32.08 | 306.17 | 0.6185 | 737.1 | 635.0 | |
| 3.43 | -25.00 | 2.16 | -25.00 | 20.87 | 127.26 | 32.09 | 306.70 | 0.6215 | 849.2 | 999999 | |
| 1.17 | 16.60 | 0.72 | 10.17 | 17.72 | 126.38 | 31.22 | 302.83 | 0.5898 | -848.7 | -373.5 | |
| 0.00 | 1.99 | 0.00 | 1.21 | 17.87 | 125.71 | 30.54 | 303.59 | 0.5828 | 508.0 | 500.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
