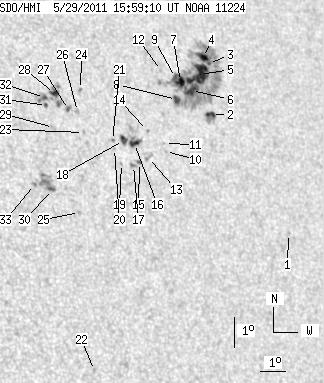

SDO HMI 2011-05-29 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.90 | 298.65 | 49.61 | 200.38 | 20.78 | 131.60 | 36.99 | 303.21 | 0.6739 | -234.7 | -145.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-29 15:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.87 | 16.42 | 135.48 | 40.87 | 295.20 | 0.6960 | 388.0 | 372.0 | |
| 4.15 | 9.48 | 2.83 | 6.46 | 20.22 | 133.32 | 38.71 | 301.42 | 0.6899 | -736.0 | -560.4 | |
| 1.35 | 201.95 | 0.94 | 138.54 | 21.90 | 133.72 | 39.11 | 303.38 | 0.7031 | -557.2 | -325.5 | |
| 4.96 | -3.00 | 3.45 | -3.00 | 22.10 | 133.57 | 38.96 | 303.71 | 0.7027 | -776.7 | 999999 | |
| 22.47 | -3.00 | 15.45 | -3.00 | 21.53 | 133.22 | 38.61 | 303.19 | 0.6959 | -839.7 | 999999 | |
| 6.95 | -3.00 | 4.73 | -3.00 | 21.00 | 132.72 | 38.11 | 302.79 | 0.6877 | -937.1 | 999999 | |
| 6.05 | -3.00 | 4.10 | -3.00 | 21.29 | 132.35 | 37.74 | 303.39 | 0.6854 | -1086.5 | 999999 | |
| 4.60 | -3.00 | 3.09 | -3.00 | 20.70 | 132.01 | 37.40 | 302.82 | 0.6784 | -934.0 | 999999 | |
| 3.34 | -3.00 | 2.26 | -3.00 | 21.42 | 132.19 | 37.58 | 303.66 | 0.6844 | -731.4 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.41 | 19.00 | 131.10 | 36.49 | 301.07 | 0.6588 | 374.0 | 303.4 | |
| 0.00 | 0.81 | 0.00 | 0.53 | 19.26 | 131.13 | 36.52 | 301.41 | 0.6605 | 373.0 | 350.4 | |
| 0.00 | 0.99 | 0.00 | 0.67 | 21.64 | 131.68 | 37.07 | 304.27 | 0.6803 | -224.0 | -206.6 | |
| 0.00 | 3.61 | 0.00 | 2.35 | 18.79 | 130.37 | 35.76 | 301.24 | 0.6494 | 542.0 | 529.0 | |
| 0.00 | 1.08 | 0.00 | 0.71 | 19.67 | 130.56 | 35.95 | 302.34 | 0.6565 | 398.0 | 310.4 | |
| 0.45 | 1.62 | 0.29 | 1.05 | 18.63 | 129.98 | 35.37 | 301.26 | 0.6439 | 863.6 | 703.9 | |
| 4.15 | 15.16 | 2.69 | 9.81 | 19.24 | 129.93 | 35.32 | 302.15 | 0.6469 | 675.3 | 317.2 | |
| 0.00 | 2.62 | 0.00 | 1.68 | 18.53 | 129.72 | 35.11 | 301.28 | 0.6403 | 910.0 | 691.4 | |
| 4.24 | -16.00 | 2.74 | -16.00 | 19.33 | 129.52 | 34.91 | 302.54 | 0.6429 | 734.7 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.75 | 18.59 | 129.26 | 34.65 | 301.66 | 0.6354 | 801.0 | 656.2 | |
| 0.00 | 0.99 | 0.00 | 0.64 | 19.07 | 129.10 | 34.49 | 302.45 | 0.6365 | 690.0 | 553.1 | |
| 0.00 | 1.26 | 0.00 | 0.81 | 19.33 | 129.09 | 34.48 | 302.83 | 0.6379 | 651.0 | 687.3 | |
| 0.00 | 1.17 | 0.00 | 0.71 | 12.01 | 127.04 | 32.43 | 292.99 | 0.5719 | -115.0 | -54.2 | |
| 0.00 | 1.35 | 0.00 | 0.86 | 19.58 | 128.02 | 33.41 | 303.92 | 0.6274 | 677.0 | 575.3 | |
| 0.00 | 1.71 | 0.00 | 1.10 | 20.98 | 128.25 | 33.64 | 305.70 | 0.6391 | 783.0 | 620.3 | |
| 0.00 | 1.53 | 0.00 | 0.95 | 17.00 | 127.31 | 32.70 | 300.67 | 0.6028 | -716.0 | -626.3 | |
| 0.00 | 1.80 | 0.00 | 1.15 | 20.26 | 127.95 | 33.34 | 304.92 | 0.6311 | 546.0 | 463.2 | |
| 1.62 | 2.89 | 1.03 | 1.83 | 20.32 | 127.62 | 33.00 | 305.25 | 0.6277 | 816.6 | 638.6 | |
| 3.70 | 22.47 | 2.35 | 14.23 | 20.84 | 127.20 | 32.59 | 306.28 | 0.6267 | 790.1 | 677.8 | |
| 0.00 | 2.35 | 0.00 | 1.47 | 19.73 | 126.90 | 32.29 | 304.95 | 0.6157 | 677.0 | 521.2 | |
| 2.44 | 17.51 | 1.50 | 10.78 | 17.72 | 126.43 | 31.82 | 302.38 | 0.5970 | -776.7 | -274.5 | |
| 1.44 | 1.71 | 0.91 | 1.08 | 20.44 | 126.80 | 32.19 | 306.04 | 0.6195 | 843.2 | 828.0 | |
| 1.99 | -28.00 | 1.25 | -28.00 | 20.70 | 126.78 | 32.17 | 306.41 | 0.6211 | 887.8 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.94 | 17.88 | 125.79 | 31.18 | 303.10 | 0.5903 | 710.0 | 607.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
