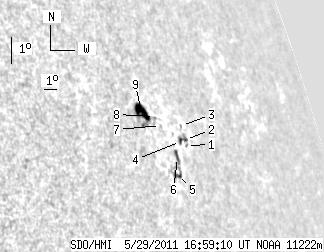

SDO HMI 2011-05-29 16:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.86 | 47.09 | 21.96 | 58.77 | 15.60 | 159.38 | 65.32 | 287.51 | 0.9192 | 96.9 | -96.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-29 16:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 1.57 | 15.29 | 161.17 | 67.11 | 286.92 | 0.9304 | -284.0 | -165.4 | |
| 0.54 | 6.41 | 0.73 | 8.51 | 15.49 | 161.21 | 67.16 | 287.12 | 0.9309 | -370.0 | -384.8 | |
| 0.00 | 0.90 | 0.00 | 1.21 | 15.93 | 161.19 | 67.13 | 287.59 | 0.9310 | -304.0 | -256.1 | |
| 1.53 | -2.00 | 2.02 | -2.00 | 15.41 | 160.76 | 66.70 | 287.10 | 0.9280 | -535.2 | 999999 | |
| 3.52 | 9.02 | 4.44 | 11.41 | 14.32 | 159.86 | 65.80 | 286.05 | 0.9213 | -476.2 | -372.1 | |
| 0.00 | 4.87 | 0.00 | 6.25 | 14.90 | 160.20 | 66.14 | 286.63 | 0.9240 | -103.0 | -136.0 | |
| 0.00 | 1.35 | 0.00 | 1.70 | 15.90 | 159.50 | 65.44 | 287.80 | 0.9204 | -416.0 | -342.1 | |
| 0.00 | 0.72 | 0.00 | 0.90 | 16.18 | 159.22 | 65.16 | 288.15 | 0.9188 | 30.0 | -43.1 | |
| 12.27 | 22.65 | 14.77 | 27.22 | 16.32 | 158.33 | 64.27 | 288.44 | 0.9131 | 484.4 | 265.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
