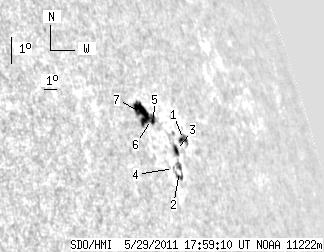

SDO HMI 2011-05-29 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.25 | 49.81 | 35.43 | 63.43 | 15.64 | 159.35 | 65.85 | 287.47 | 0.9227 | 158.6 | -225.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-29 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.71 | 6.86 | 3.69 | 9.37 | 15.49 | 161.08 | 67.57 | 287.07 | 0.9334 | -471.4 | -354.2 | |
| 0.00 | 9.66 | 0.00 | 12.58 | 14.46 | 160.09 | 66.59 | 286.10 | 0.9265 | -335.0 | -333.0 | |
| 3.34 | 4.69 | 4.40 | 6.17 | 15.13 | 160.26 | 66.76 | 286.79 | 0.9281 | -211.0 | -190.1 | |
| 0.00 | 1.17 | 0.00 | 1.50 | 14.55 | 159.67 | 66.16 | 286.25 | 0.9238 | -386.0 | -395.1 | |
| 0.27 | 27.43 | 0.34 | 33.81 | 15.99 | 159.00 | 65.50 | 287.90 | 0.9208 | 58.0 | 124.4 | |
| 3.79 | -5.00 | 4.75 | -5.00 | 16.09 | 158.91 | 65.40 | 288.01 | 0.9203 | -163.6 | 999999 | |
| 18.14 | -5.00 | 22.25 | -5.00 | 16.30 | 158.28 | 64.78 | 288.34 | 0.9164 | 457.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
