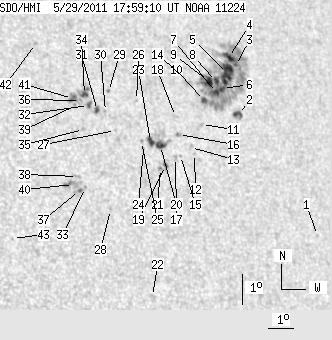

SDO HMI 2011-05-29 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.52 | 294.57 | 42.51 | 200.65 | 20.82 | 131.63 | 38.13 | 302.57 | 0.6863 | -124.3 | -178.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-29 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.70 | 16.40 | 135.56 | 42.06 | 294.64 | 0.7093 | 590.0 | 407.1 | |
| 4.15 | 5.68 | 2.88 | 3.94 | 20.27 | 133.32 | 39.81 | 300.87 | 0.7021 | -680.8 | -562.0 | |
| 0.72 | 194.64 | 0.51 | 135.73 | 21.88 | 133.71 | 40.21 | 302.73 | 0.7144 | -415.5 | -344.2 | |
| 4.69 | -3.00 | 3.31 | -3.00 | 22.14 | 133.50 | 40.00 | 303.18 | 0.7136 | -681.2 | 999999 | |
| 16.51 | -3.00 | 11.55 | -3.00 | 21.61 | 133.28 | 39.78 | 302.62 | 0.7086 | -813.1 | 999999 | |
| 2.26 | -3.00 | 1.56 | -3.00 | 21.12 | 132.91 | 39.40 | 302.19 | 0.7020 | -787.1 | 999999 | |
| 2.44 | -3.00 | 1.68 | -3.00 | 20.98 | 132.61 | 39.11 | 302.18 | 0.6982 | -933.0 | 999999 | |
| 3.16 | -3.00 | 2.19 | -3.00 | 21.34 | 132.73 | 39.22 | 302.59 | 0.7013 | -875.5 | 999999 | |
| 5.23 | -3.00 | 3.61 | -3.00 | 21.34 | 132.39 | 38.88 | 302.78 | 0.6977 | -988.2 | 999999 | |
| 3.07 | -3.00 | 2.09 | -3.00 | 20.71 | 132.03 | 38.52 | 302.17 | 0.6905 | -906.5 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.98 | 19.93 | 131.67 | 38.17 | 301.33 | 0.6824 | -281.0 | -341.3 | |
| 0.00 | 1.17 | 0.00 | 0.78 | 18.98 | 131.12 | 37.62 | 300.37 | 0.6713 | 522.0 | 386.1 | |
| 0.00 | 1.62 | 0.00 | 1.08 | 19.17 | 131.01 | 37.51 | 300.70 | 0.6711 | 113.0 | 181.1 | |
| 0.00 | 4.24 | 0.00 | 2.89 | 21.30 | 131.54 | 38.04 | 303.22 | 0.6885 | -771.0 | -678.4 | |
| 0.00 | 1.08 | 0.00 | 0.72 | 18.91 | 130.54 | 37.03 | 300.62 | 0.6644 | 473.0 | 353.3 | |
| 0.00 | 2.62 | 0.00 | 1.74 | 19.59 | 130.64 | 37.13 | 301.49 | 0.6692 | 259.0 | 108.6 | |
| 0.00 | 2.35 | 0.00 | 1.55 | 18.84 | 130.32 | 36.81 | 300.65 | 0.6615 | 514.0 | 500.2 | |
| 0.00 | 1.62 | 0.00 | 1.08 | 20.17 | 130.68 | 37.17 | 302.25 | 0.6729 | -348.0 | -303.1 | |
| 1.44 | 4.15 | 0.94 | 2.71 | 18.58 | 129.85 | 36.35 | 300.57 | 0.6548 | 753.0 | 579.5 | |
| 5.23 | 18.68 | 3.43 | 12.25 | 19.22 | 129.81 | 36.31 | 301.49 | 0.6580 | 622.7 | 219.8 | |
| 0.00 | 1.17 | 0.00 | 0.76 | 18.48 | 129.63 | 36.12 | 300.57 | 0.6517 | 842.0 | 734.0 | |
| 0.00 | 2.62 | 0.00 | 1.64 | 14.39 | 128.45 | 34.94 | 295.30 | 0.6159 | -730.0 | -548.2 | |
| 4.06 | -20.00 | 2.65 | -20.00 | 19.35 | 129.45 | 35.94 | 301.89 | 0.6546 | 705.0 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.53 | 19.12 | 129.11 | 35.61 | 301.78 | 0.6494 | 712.0 | 568.3 | |
| 0.00 | 1.35 | 0.00 | 0.88 | 19.34 | 129.09 | 35.58 | 302.11 | 0.6505 | 889.0 | 741.3 | |
| 0.00 | 0.99 | 0.00 | 0.65 | 20.68 | 129.24 | 35.74 | 303.84 | 0.6601 | 553.0 | 448.6 | |
| 0.00 | 1.17 | 0.00 | 0.76 | 19.69 | 128.15 | 34.64 | 303.21 | 0.6420 | 476.0 | 384.8 | |
| 0.00 | 0.99 | 0.00 | 0.62 | 17.14 | 127.37 | 33.87 | 300.08 | 0.6177 | -561.0 | -480.1 | |
| 0.00 | 1.17 | 0.00 | 0.76 | 20.96 | 128.20 | 34.70 | 304.92 | 0.6506 | 604.0 | 537.2 | |
| 0.00 | 1.17 | 0.00 | 0.76 | 20.31 | 127.91 | 34.41 | 304.23 | 0.6432 | 553.0 | 471.8 | |
| 1.89 | 3.61 | 1.22 | 2.32 | 20.34 | 127.60 | 34.10 | 304.48 | 0.6400 | 780.7 | 623.4 | |
| 1.26 | 2.89 | 0.81 | 1.85 | 20.50 | 127.29 | 33.79 | 304.92 | 0.6376 | 869.6 | 740.9 | |
| 0.00 | 1.08 | 0.00 | 0.68 | 17.83 | 126.56 | 33.06 | 301.65 | 0.6122 | -647.0 | -553.9 | |
| 2.26 | 8.66 | 1.45 | 5.57 | 20.85 | 127.22 | 33.72 | 305.46 | 0.6392 | 851.2 | 511.3 | |
| 0.00 | 1.53 | 0.00 | 0.97 | 19.71 | 126.90 | 33.40 | 304.10 | 0.6281 | 732.0 | 517.8 | |
| 0.00 | 1.08 | 0.00 | 0.69 | 20.66 | 127.02 | 33.52 | 305.34 | 0.6356 | 742.0 | 766.6 | |
| 1.44 | 3.25 | 0.90 | 2.02 | 17.73 | 126.31 | 32.81 | 301.68 | 0.6087 | -731.6 | -267.6 | |
| 0.00 | 2.17 | 0.00 | 1.35 | 18.18 | 126.33 | 32.83 | 302.33 | 0.6117 | 171.0 | 246.0 | |
| 0.00 | 1.35 | 0.00 | 0.86 | 20.49 | 126.78 | 33.28 | 305.28 | 0.6319 | 959.0 | 854.1 | |
| 0.00 | 8.48 | 0.00 | 5.28 | 17.93 | 126.12 | 32.62 | 302.10 | 0.6077 | -435.0 | -135.0 | |
| 2.71 | 6.50 | 1.73 | 4.15 | 20.72 | 126.72 | 33.22 | 305.64 | 0.6328 | 826.5 | 703.1 | |
| 0.00 | 1.26 | 0.00 | 0.81 | 22.52 | 125.74 | 32.24 | 308.82 | 0.6348 | 585.0 | 400.4 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 16.17 | 123.52 | 30.02 | 301.38 | 0.5649 | 586.0 | 429.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
