SDO HMI 2011-05-29 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.57 | 22.19 | 7.73 | 20.33 | 16.13 | 38.11 | -55.40 | 70.03 | 0.8430 | -109.1 | 97.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-29 17:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

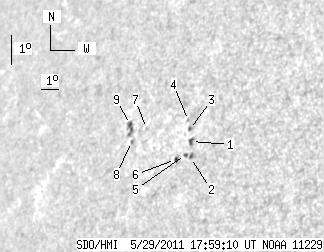

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.17 | 2.98 | 1.90 | 2.61 | 15.96 | 39.85 | -53.65 | 69.80 | 0.8272 | -516.8 | -538.2 | |
| 1.26 | 3.07 | 1.10 | 2.67 | 15.45 | 40.00 | -53.51 | 70.37 | 0.8248 | -591.4 | -345.5 | |
| 0.00 | 1.26 | 0.00 | 1.12 | 16.35 | 39.59 | -53.91 | 69.41 | 0.8305 | -498.0 | -422.6 | |
| 0.00 | 1.26 | 0.00 | 1.12 | 16.64 | 39.42 | -54.08 | 69.12 | 0.8327 | -180.0 | -225.5 | |
| 1.44 | 1.62 | 1.27 | 1.43 | 15.55 | 39.69 | -53.81 | 70.33 | 0.8279 | -463.1 | -458.5 | |
| 1.44 | 1.99 | 1.28 | 1.76 | 15.40 | 39.21 | -54.30 | 70.62 | 0.8320 | -377.4 | -251.2 | |
| 0.00 | 1.53 | 0.00 | 1.44 | 16.42 | 37.16 | -56.34 | 69.92 | 0.8521 | 587.0 | 444.3 | |
| 0.00 | 0.90 | 0.00 | 0.86 | 16.01 | 36.47 | -57.03 | 70.54 | 0.8573 | 408.0 | 337.8 | |
| 2.26 | 7.58 | 2.18 | 7.32 | 16.56 | 36.17 | -57.34 | 69.98 | 0.8609 | 507.7 | 417.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
