SDO HMI 2011-05-29 19:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.47 | 29.13 | 8.59 | 26.10 | 16.01 | 37.89 | -54.51 | 69.95 | 0.8348 | 102.6 | -9.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-29 19:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

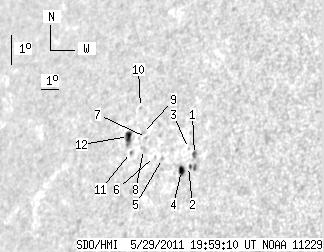

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.71 | 0.00 | 2.31 | 15.85 | 39.95 | -52.45 | 69.62 | 0.8157 | -690.0 | -536.8 | |
| 0.36 | 3.61 | 0.31 | 3.07 | 15.47 | 39.77 | -52.62 | 70.12 | 0.8165 | -483.0 | -648.6 | |
| 0.00 | 0.90 | 0.00 | 0.78 | 16.05 | 39.56 | -52.83 | 69.49 | 0.8198 | -421.0 | -298.3 | |
| 3.61 | 5.50 | 3.10 | 4.73 | 15.35 | 39.45 | -52.94 | 70.35 | 0.8193 | -409.4 | -19.8 | |
| 0.00 | 1.26 | 0.00 | 1.12 | 15.75 | 38.29 | -54.11 | 70.17 | 0.8310 | 301.0 | 260.2 | |
| 0.00 | 0.27 | 0.00 | 0.24 | 15.82 | 37.82 | -54.57 | 70.20 | 0.8353 | 418.0 | 405.7 | |
| 0.00 | 0.90 | 0.00 | 0.83 | 16.44 | 37.12 | -55.27 | 69.65 | 0.8428 | 429.0 | 424.9 | |
| 0.00 | 3.07 | 0.00 | 2.80 | 16.05 | 37.12 | -55.28 | 70.10 | 0.8421 | 211.0 | 263.8 | |
| 0.00 | 1.44 | 0.00 | 1.33 | 16.57 | 36.84 | -55.55 | 69.57 | 0.8456 | 294.0 | 285.9 | |
| 0.00 | 0.72 | 0.00 | 0.68 | 17.40 | 36.35 | -56.04 | 68.72 | 0.8515 | 475.0 | 437.6 | |
| 0.00 | 1.17 | 0.00 | 1.09 | 15.97 | 36.42 | -55.97 | 70.36 | 0.8481 | 402.0 | 316.1 | |
| 5.50 | 7.58 | 5.18 | 7.12 | 16.48 | 36.08 | -56.31 | 69.84 | 0.8520 | 461.3 | 322.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
