SDO HMI 2011-05-29 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.91 | 32.19 | 9.58 | 28.16 | 15.82 | 38.34 | -53.50 | 69.93 | 0.8251 | -6.8 | 21.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-29 20:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

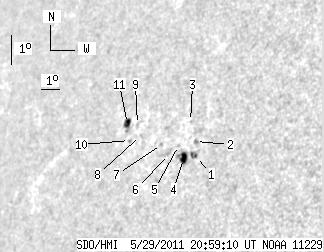

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.17 | 4.78 | 0.98 | 4.01 | 15.37 | 40.19 | -51.65 | 69.99 | 0.8069 | -702.3 | -663.9 | |
| 0.00 | 2.17 | 0.00 | 1.82 | 15.85 | 39.97 | -51.87 | 69.47 | 0.8102 | -774.0 | -583.8 | |
| 0.00 | 0.99 | 0.00 | 0.85 | 16.49 | 39.47 | -52.37 | 68.84 | 0.8165 | -481.0 | -375.9 | |
| 5.50 | 9.11 | 4.66 | 7.73 | 15.32 | 39.54 | -52.30 | 70.23 | 0.8131 | -483.2 | 128.4 | |
| 0.00 | 0.99 | 0.00 | 0.85 | 15.73 | 39.13 | -52.71 | 69.84 | 0.8179 | 280.0 | 213.9 | |
| 0.00 | 1.80 | 0.00 | 1.56 | 15.46 | 38.70 | -53.13 | 70.28 | 0.8213 | 247.0 | 232.9 | |
| 0.00 | 1.26 | 0.00 | 1.11 | 15.78 | 38.21 | -53.63 | 70.02 | 0.8266 | 394.0 | 340.9 | |
| 0.00 | 0.81 | 0.00 | 0.73 | 16.08 | 36.94 | -54.89 | 69.97 | 0.8388 | 510.0 | 457.4 | |
| 0.00 | 1.17 | 0.00 | 1.07 | 16.44 | 36.63 | -55.21 | 69.63 | 0.8423 | 600.0 | 491.9 | |
| 0.00 | 1.44 | 0.00 | 1.32 | 15.93 | 36.39 | -55.44 | 70.28 | 0.8434 | 489.0 | 319.9 | |
| 4.24 | 7.67 | 3.94 | 7.11 | 16.48 | 36.05 | -55.79 | 69.73 | 0.8475 | 394.7 | 372.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
