SDO HMI 2011-05-29 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 116.26 | 608.54 | 105.99 | 547.31 | -20.72 | 36.88 | -54.40 | 114.40 | 0.8357 | 146.6 | 115.5 | |
|
previous
or next observation for the same group /

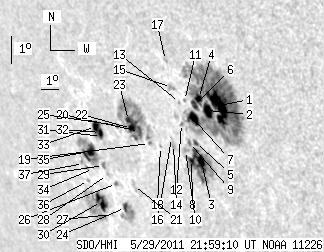

back to the solar disc SDO HMI 2011-05-29 21:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.40 | 310.74 | 27.00 | 260.47 | -19.85 | 40.05 | -51.24 | 114.19 | 0.8062 | 1064.6 | 394.8 | |
| 9.57 | -1.00 | 8.09 | -1.00 | -20.01 | 39.40 | -51.88 | 114.19 | 0.8126 | 724.7 | 999999 | |
| 6.32 | 60.83 | 5.54 | 53.49 | -21.65 | 38.26 | -53.02 | 115.82 | 0.8270 | 789.6 | 180.0 | |
| 4.06 | -1.00 | 3.45 | -1.00 | -19.62 | 39.11 | -52.17 | 113.64 | 0.8144 | 704.5 | 999999 | |
| 2.26 | 3.25 | 1.97 | 2.84 | -21.03 | 38.26 | -53.02 | 115.09 | 0.8255 | 572.9 | 502.5 | |
| 2.26 | -1.00 | 1.93 | -1.00 | -19.81 | 38.81 | -52.48 | 113.79 | 0.8176 | 447.0 | 999999 | |
| 9.93 | -1.00 | 8.57 | -1.00 | -20.25 | 38.54 | -52.74 | 114.25 | 0.8212 | 575.1 | 999999 | |
| 1.26 | -3.00 | 1.12 | -3.00 | -21.58 | 37.75 | -53.53 | 115.59 | 0.8313 | 135.8 | 999999 | |
| 1.35 | 2.80 | 1.19 | 2.46 | -21.02 | 37.93 | -53.35 | 115.00 | 0.8284 | 397.4 | 341.4 | |
| 0.00 | 3.16 | 0.00 | 2.81 | -21.28 | 37.58 | -53.71 | 115.20 | 0.8322 | -265.0 | -219.9 | |
| 0.00 | 0.90 | 0.00 | 0.78 | -19.67 | 38.33 | -52.95 | 113.50 | 0.8217 | 295.0 | 205.1 | |
| 0.00 | 1.17 | 0.00 | 1.03 | -20.41 | 37.81 | -53.47 | 114.24 | 0.8281 | 235.0 | 195.1 | |
| 0.00 | 1.26 | 0.00 | 1.10 | -19.73 | 38.04 | -53.25 | 113.50 | 0.8245 | 40.0 | 22.4 | |
| 0.00 | 3.61 | 0.00 | 3.25 | -21.08 | 37.02 | -54.27 | 114.82 | 0.8366 | -155.0 | -240.1 | |
| 0.00 | 4.24 | 0.00 | 3.70 | -19.25 | 37.83 | -53.45 | 112.87 | 0.8253 | 34.0 | 14.3 | |
| 0.00 | 0.81 | 0.00 | 0.73 | -20.85 | 37.03 | -54.26 | 114.55 | 0.8360 | -197.0 | -236.3 | |
| 0.00 | 1.53 | 0.00 | 1.33 | -18.38 | 37.91 | -53.38 | 111.86 | 0.8228 | 411.0 | 281.5 | |
| 0.00 | 1.35 | 0.00 | 1.24 | -21.13 | 36.25 | -55.03 | 114.68 | 0.8433 | -614.0 | -557.0 | |
| 0.00 | 1.44 | 0.00 | 1.34 | -21.03 | 35.67 | -55.61 | 114.42 | 0.8480 | -709.0 | -637.2 | |
| 3.43 | 82.04 | 3.21 | 76.85 | -20.63 | 35.31 | -55.97 | 113.88 | 0.8502 | -738.5 | -323.2 | |
| 0.00 | 3.61 | 0.00 | 3.54 | -22.38 | 33.90 | -57.38 | 115.54 | 0.8652 | -665.0 | -443.7 | |
| 3.43 | -20.00 | 3.24 | -20.00 | -20.53 | 34.90 | -56.38 | 113.67 | 0.8535 | -709.5 | 999999 | |
| 3.43 | -20.00 | 3.24 | -20.00 | -20.27 | 34.87 | -56.41 | 113.36 | 0.8533 | -565.7 | 999999 | |
| 3.43 | 17.96 | 3.47 | 18.20 | -23.09 | 32.92 | -58.36 | 116.11 | 0.8741 | -725.3 | -443.7 | |
| 1.26 | 2.26 | 1.22 | 2.17 | -20.42 | 34.13 | -57.15 | 113.37 | 0.8597 | -187.4 | -96.9 | |
| 1.35 | 1.99 | 1.37 | 2.00 | -22.30 | 32.90 | -58.39 | 115.22 | 0.8729 | -590.4 | -568.7 | |
| 0.00 | 0.99 | 0.00 | 1.04 | -23.31 | 31.93 | -59.35 | 116.13 | 0.8820 | -597.0 | -489.3 | |
| 0.00 | 1.53 | 0.00 | 1.56 | -22.00 | 32.53 | -58.76 | 114.80 | 0.8752 | -727.0 | -648.1 | |
| 1.90 | 2.89 | 1.93 | 2.93 | -21.70 | 32.47 | -58.81 | 114.46 | 0.8751 | -403.0 | -469.9 | |
| 10.11 | 44.31 | 10.64 | 47.24 | -22.87 | 31.53 | -59.76 | 115.56 | 0.8842 | -655.1 | 107.8 | |
| 1.81 | 15.43 | 1.80 | 15.42 | -20.77 | 32.94 | -58.34 | 113.50 | 0.8698 | 474.0 | -470.6 | |
| 2.08 | -31.00 | 2.07 | -31.00 | -20.64 | 32.96 | -58.32 | 113.36 | 0.8695 | -364.9 | 999999 | |
| 4.24 | -31.00 | 4.24 | -31.00 | -20.44 | 32.77 | -58.51 | 113.10 | 0.8707 | -673.2 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.47 | -21.79 | 31.77 | -59.52 | 114.41 | 0.8806 | -383.0 | -325.6 | |
| 10.38 | 32.40 | 10.70 | 33.43 | -21.24 | 31.88 | -59.40 | 113.81 | 0.8789 | -642.6 | -311.4 | |
| 0.00 | 1.17 | 0.00 | 1.24 | -22.18 | 31.17 | -60.12 | 114.71 | 0.8857 | -287.0 | -157.4 | |
| 0.00 | 4.42 | 0.00 | 4.65 | -21.62 | 31.23 | -60.06 | 114.11 | 0.8844 | -45.0 | -61.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
