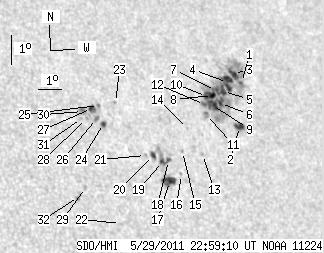

SDO HMI 2011-05-29 22:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.12 | 232.67 | 42.57 | 165.27 | 20.94 | 131.73 | 41.00 | 301.10 | 0.7172 | -133.5 | -171.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-29 22:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.26 | 154.44 | 0.93 | 112.28 | 21.81 | 133.88 | 43.15 | 301.10 | 0.7438 | -238.5 | -347.2 | |
| 5.60 | 6.77 | 4.05 | 4.90 | 20.36 | 133.26 | 42.54 | 299.58 | 0.7311 | -626.6 | -432.5 | |
| 5.87 | -1.00 | 4.32 | -1.00 | 22.11 | 133.63 | 42.90 | 301.59 | 0.7427 | -581.2 | 999999 | |
| 10.29 | -1.00 | 7.52 | -1.00 | 21.80 | 133.25 | 42.52 | 301.40 | 0.7374 | -722.9 | 999999 | |
| 3.25 | -1.00 | 2.36 | -1.00 | 21.51 | 132.96 | 42.23 | 301.17 | 0.7331 | -789.5 | 999999 | |
| 0.81 | -1.00 | 0.59 | -1.00 | 21.11 | 132.69 | 41.96 | 300.81 | 0.7285 | -703.7 | 999999 | |
| 1.62 | -1.00 | 1.17 | -1.00 | 21.53 | 132.62 | 41.89 | 301.38 | 0.7298 | -777.7 | 999999 | |
| 2.53 | -1.00 | 1.82 | -1.00 | 21.37 | 132.42 | 41.70 | 301.27 | 0.7270 | -988.9 | 999999 | |
| 6.95 | -1.00 | 4.98 | -1.00 | 21.04 | 132.31 | 41.58 | 300.91 | 0.7243 | -877.5 | 999999 | |
| 0.27 | -1.00 | 0.19 | -1.00 | 21.33 | 132.15 | 41.42 | 301.36 | 0.7240 | -917.0 | 999999 | |
| 0.00 | 3.07 | 0.00 | 2.18 | 20.74 | 131.95 | 41.22 | 300.71 | 0.7191 | -919.0 | -799.3 | |
| 0.90 | -1.00 | 0.64 | -1.00 | 21.07 | 131.97 | 41.24 | 301.12 | 0.7209 | -923.6 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.94 | 19.43 | 131.36 | 40.63 | 299.31 | 0.7066 | 408.0 | 248.7 | |
| 0.00 | 0.90 | 0.00 | 0.63 | 20.27 | 130.98 | 40.25 | 300.61 | 0.7066 | -744.0 | -629.2 | |
| 0.00 | 1.26 | 0.00 | 0.87 | 19.52 | 130.54 | 39.81 | 299.85 | 0.6981 | 485.0 | 344.7 | |
| 0.00 | 0.99 | 0.00 | 0.68 | 18.77 | 130.28 | 39.55 | 299.00 | 0.6916 | 386.0 | 327.1 | |
| 9.57 | 15.07 | 6.48 | 10.21 | 18.54 | 129.72 | 38.99 | 298.98 | 0.6842 | 691.2 | 352.2 | |
| 0.99 | 19.05 | 0.68 | 12.93 | 19.22 | 129.86 | 39.14 | 299.82 | 0.6892 | 546.0 | 144.5 | |
| 2.44 | -18.00 | 1.65 | -18.00 | 19.18 | 129.61 | 38.88 | 299.91 | 0.6862 | 533.9 | 999999 | |
| 2.71 | -18.00 | 1.83 | -18.00 | 19.37 | 129.29 | 38.56 | 300.34 | 0.6837 | 558.0 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.91 | 19.37 | 128.96 | 38.23 | 300.53 | 0.6800 | 651.0 | 593.8 | |
| 0.00 | 1.08 | 0.00 | 0.70 | 17.16 | 127.38 | 36.66 | 298.37 | 0.6506 | -632.0 | -463.0 | |
| 0.00 | 0.81 | 0.00 | 0.55 | 21.09 | 128.22 | 37.49 | 303.25 | 0.6813 | 550.0 | 416.1 | |
| 2.35 | 3.07 | 1.56 | 2.04 | 20.39 | 127.53 | 36.80 | 302.75 | 0.6699 | 705.0 | 512.9 | |
| 0.00 | 1.81 | 0.00 | 1.21 | 20.98 | 127.49 | 36.76 | 303.56 | 0.6729 | 591.0 | 468.9 | |
| 0.00 | 3.25 | 0.00 | 2.16 | 20.55 | 127.29 | 36.56 | 303.12 | 0.6682 | 909.0 | 723.1 | |
| 2.71 | 4.60 | 1.80 | 3.06 | 20.88 | 127.18 | 36.45 | 303.62 | 0.6689 | 648.4 | 740.5 | |
| 0.00 | 1.26 | 0.00 | 0.84 | 20.55 | 126.88 | 36.15 | 303.37 | 0.6638 | 578.0 | 591.5 | |
| 0.00 | 1.62 | 0.00 | 1.05 | 18.30 | 126.27 | 35.54 | 300.66 | 0.6438 | 554.0 | 381.3 | |
| 0.00 | 5.51 | 0.00 | 3.64 | 20.78 | 126.78 | 36.06 | 303.74 | 0.6640 | 707.0 | 709.2 | |
| 0.00 | 0.99 | 0.00 | 0.65 | 20.55 | 126.68 | 35.95 | 303.50 | 0.6615 | 870.0 | 720.2 | |
| 0.00 | 4.42 | 0.00 | 2.84 | 18.01 | 125.92 | 35.20 | 300.46 | 0.6382 | 518.0 | 334.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
