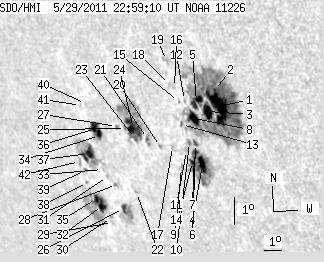

SDO HMI 2011-05-29 22:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 141.96 | 615.28 | 127.95 | 548.22 | -20.73 | 36.76 | -53.97 | 114.52 | 0.8320 | 97.5 | 125.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-29 22:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.40 | 313.93 | 27.52 | 260.37 | -19.86 | 40.01 | -50.72 | 114.35 | 0.8014 | 1070.0 | 386.6 | |
| 1.62 | -1.00 | 1.33 | -1.00 | -19.34 | 40.03 | -50.70 | 113.73 | 0.7998 | 960.8 | 999999 | |
| 10.11 | -1.00 | 8.45 | -1.00 | -20.01 | 39.37 | -51.36 | 114.35 | 0.8078 | 729.4 | 999999 | |
| 8.03 | 55.87 | 6.96 | 48.53 | -21.72 | 38.27 | -52.46 | 116.06 | 0.8222 | 796.7 | 148.7 | |
| 8.57 | -1.00 | 7.22 | -1.00 | -19.68 | 38.94 | -51.79 | 113.83 | 0.8110 | 549.9 | 999999 | |
| 2.35 | 2.80 | 2.02 | 2.41 | -21.03 | 38.24 | -52.49 | 115.25 | 0.8207 | 614.7 | 449.8 | |
| 3.07 | -4.00 | 2.66 | -4.00 | -21.32 | 38.04 | -52.69 | 115.53 | 0.8233 | 500.4 | 999999 | |
| 10.02 | -1.00 | 8.54 | -1.00 | -20.23 | 38.53 | -52.20 | 114.37 | 0.8161 | 559.5 | 999999 | |
| 0.81 | -4.00 | 0.71 | -4.00 | -21.61 | 37.78 | -52.95 | 115.80 | 0.8263 | 96.3 | 999999 | |
| 0.54 | 2.71 | 0.47 | 2.35 | -21.00 | 37.93 | -52.79 | 115.12 | 0.8234 | 511.2 | 327.1 | |
| 0.00 | 2.44 | 0.00 | 2.13 | -21.25 | 37.64 | -53.09 | 115.34 | 0.8267 | -218.0 | -157.7 | |
| 0.00 | 1.44 | 0.00 | 1.23 | -19.64 | 38.33 | -52.40 | 113.62 | 0.8166 | 323.0 | 193.9 | |
| 0.00 | 1.62 | 0.00 | 1.41 | -20.41 | 37.80 | -52.93 | 114.39 | 0.8233 | 225.0 | 148.8 | |
| 0.00 | 2.17 | 0.00 | 1.93 | -21.80 | 37.07 | -53.66 | 115.82 | 0.8330 | -281.0 | -219.2 | |
| 0.00 | 1.08 | 0.00 | 0.93 | -19.67 | 37.99 | -52.74 | 113.56 | 0.8197 | 108.0 | 58.4 | |
| 0.00 | 0.99 | 0.00 | 0.85 | -19.22 | 37.99 | -52.74 | 113.03 | 0.8187 | 212.0 | 189.2 | |
| 0.00 | 1.90 | 0.00 | 1.69 | -21.11 | 36.94 | -53.79 | 114.99 | 0.8325 | -223.0 | -251.8 | |
| 0.00 | 1.17 | 0.00 | 1.01 | -19.12 | 37.77 | -52.96 | 112.85 | 0.8206 | 94.0 | -21.2 | |
| 0.00 | 4.24 | 0.00 | 3.63 | -18.35 | 37.95 | -52.78 | 111.98 | 0.8172 | 324.0 | 224.4 | |
| 0.00 | 1.71 | 0.00 | 1.55 | -21.11 | 36.28 | -54.45 | 114.80 | 0.8383 | -686.0 | -595.0 | |
| 1.26 | 5.60 | 1.16 | 5.12 | -20.84 | 35.68 | -55.04 | 114.34 | 0.8428 | -709.9 | -625.6 | |
| 0.00 | 1.71 | 0.00 | 1.66 | -22.58 | 34.01 | -56.72 | 115.93 | 0.8603 | -550.0 | -495.8 | |
| 1.71 | 71.85 | 1.60 | 66.47 | -20.83 | 35.00 | -55.73 | 114.17 | 0.8486 | 225.5 | -289.9 | |
| 19.86 | -23.00 | 18.42 | -23.00 | -20.51 | 35.06 | -55.67 | 113.81 | 0.8475 | -624.6 | 999999 | |
| 0.45 | -23.00 | 0.42 | -23.00 | -20.50 | 34.60 | -56.13 | 113.69 | 0.8514 | -176.4 | 999999 | |
| 3.61 | 18.41 | 3.60 | 18.36 | -23.09 | 32.87 | -57.86 | 116.23 | 0.8703 | -702.4 | -436.7 | |
| 1.53 | 1.81 | 1.46 | 1.71 | -20.43 | 34.11 | -56.62 | 113.50 | 0.8553 | -235.3 | -139.3 | |
| 0.00 | 2.53 | 0.00 | 2.51 | -22.30 | 32.96 | -57.77 | 115.37 | 0.8681 | -475.0 | -532.4 | |
| 0.00 | 0.72 | 0.00 | 0.74 | -23.54 | 31.85 | -58.88 | 116.50 | 0.8789 | -386.0 | -304.1 | |
| 0.00 | 1.71 | 0.00 | 1.76 | -23.38 | 31.91 | -58.82 | 116.33 | 0.8782 | -557.0 | -452.8 | |
| 0.00 | 1.26 | 0.00 | 1.26 | -22.04 | 32.57 | -58.15 | 114.98 | 0.8706 | -674.0 | -616.3 | |
| 6.95 | 49.37 | 7.19 | 51.76 | -22.98 | 31.61 | -59.12 | 115.82 | 0.8797 | -674.9 | 60.4 | |
| 0.00 | 0.72 | 0.00 | 0.72 | -21.81 | 32.41 | -58.32 | 114.68 | 0.8715 | -516.0 | -561.5 | |
| 2.44 | 17.96 | 2.39 | 17.70 | -20.71 | 32.92 | -57.81 | 113.55 | 0.8655 | 545.2 | -121.7 | |
| 3.25 | -32.00 | 3.38 | -32.00 | -22.74 | 31.39 | -59.34 | 115.51 | 0.8809 | -635.2 | 999999 | |
| 9.75 | -34.00 | 9.60 | -34.00 | -20.48 | 32.81 | -57.92 | 113.27 | 0.8660 | -694.6 | 999999 | |
| 11.19 | 39.26 | 11.36 | 39.91 | -21.28 | 31.87 | -58.86 | 113.97 | 0.8748 | -674.3 | -252.9 | |
| 0.00 | 0.99 | 0.00 | 1.04 | -22.22 | 31.18 | -59.55 | 114.87 | 0.8816 | -279.0 | -210.1 | |
| 1.44 | 1.90 | 1.49 | 1.96 | -21.82 | 31.32 | -59.41 | 114.47 | 0.8799 | -205.5 | -193.2 | |
| 0.00 | 1.17 | 0.00 | 1.15 | -19.67 | 32.67 | -58.06 | 112.32 | 0.8658 | -436.0 | -400.0 | |
| 0.00 | 0.90 | 0.00 | 0.90 | -19.73 | 32.33 | -58.40 | 112.32 | 0.8686 | -300.0 | -220.0 | |
| 0.00 | 3.34 | 0.00 | 3.47 | -21.53 | 31.13 | -59.60 | 114.10 | 0.8809 | -241.0 | -1.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
