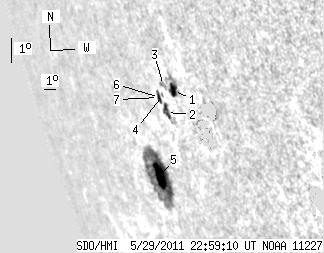

SDO HMI 2011-05-29 22:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.15 | 134.04 | 41.70 | 201.83 | -19.63 | 20.98 | -69.74 | 110.49 | 0.9445 | 34.7 | 24.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-29 22:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.13 | 15.71 | 9.34 | 20.51 | -17.56 | 23.80 | -66.92 | 108.60 | 0.9271 | -575.5 | -313.2 | |
| 6.50 | 12.64 | 8.93 | 17.26 | -18.24 | 22.67 | -68.06 | 109.21 | 0.9344 | -496.1 | -439.7 | |
| 0.00 | 3.88 | 0.00 | 5.23 | -17.39 | 23.10 | -67.63 | 108.34 | 0.9313 | 303.0 | 212.4 | |
| 0.00 | 0.99 | 0.00 | 1.36 | -17.70 | 22.77 | -67.96 | 108.64 | 0.9335 | -269.0 | -211.9 | |
| 11.55 | 96.22 | 17.92 | 151.09 | -20.24 | 20.26 | -70.47 | 111.06 | 0.9490 | 636.6 | 76.7 | |
| 2.26 | 4.60 | 3.12 | 6.38 | -17.76 | 22.46 | -68.27 | 108.67 | 0.9353 | -151.4 | -18.1 | |
| 1.71 | -6.00 | 2.39 | -6.00 | -17.76 | 22.37 | -68.36 | 108.66 | 0.9359 | 146.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
