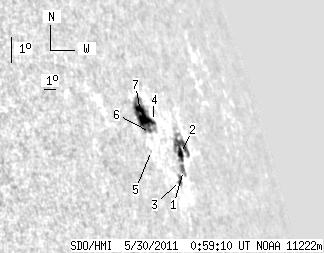

SDO HMI 2011-05-30 00:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.63 | 77.83 | 39.33 | 118.46 | 15.83 | 159.43 | 69.81 | 287.14 | 0.9462 | 160.0 | -163.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-30 00:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.97 | 0.00 | 7.94 | 14.84 | 160.66 | 71.04 | 285.96 | 0.9522 | -425.0 | -304.0 | |
| 4.06 | 26.36 | 6.56 | 42.98 | 15.38 | 160.80 | 71.17 | 286.51 | 0.9532 | -366.4 | -331.4 | |
| 3.25 | 5.06 | 5.04 | 7.84 | 14.52 | 160.12 | 70.50 | 285.68 | 0.9492 | -512.9 | -397.1 | |
| 2.53 | 40.63 | 3.74 | 58.55 | 16.37 | 158.93 | 69.31 | 287.76 | 0.9439 | -103.2 | 78.1 | |
| 0.00 | 0.81 | 0.00 | 1.15 | 15.43 | 158.14 | 68.52 | 286.87 | 0.9388 | 114.0 | 194.3 | |
| 0.72 | -4.00 | 1.05 | -4.00 | 16.01 | 158.48 | 68.85 | 287.44 | 0.9411 | -193.0 | 999999 | |
| 16.07 | -4.00 | 22.94 | -4.00 | 16.51 | 158.06 | 68.44 | 288.02 | 0.9392 | 544.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
