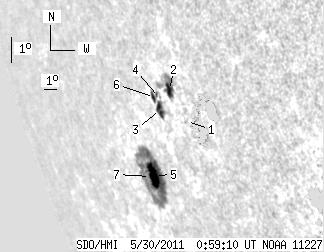

SDO HMI 2011-05-30 00:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.51 | 138.66 | 44.77 | 197.97 | -19.58 | 21.03 | -68.59 | 110.58 | 0.9381 | -28.7 | 30.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-30 00:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 1.33 | -18.57 | 24.40 | -65.22 | 109.91 | 0.9171 | -394.0 | -351.9 | |
| 7.49 | 23.38 | 9.40 | 29.37 | -17.57 | 23.80 | -65.82 | 108.75 | 0.9201 | -572.6 | -222.7 | |
| 8.22 | 10.56 | 10.82 | 13.90 | -18.16 | 22.63 | -66.99 | 109.25 | 0.9280 | -540.8 | -514.6 | |
| 0.00 | 0.99 | 0.00 | 1.29 | -17.78 | 22.84 | -66.78 | 108.86 | 0.9264 | -636.0 | -436.1 | |
| 11.83 | 96.60 | 17.44 | 144.08 | -20.25 | 20.27 | -69.35 | 111.20 | 0.9431 | 694.2 | 99.3 | |
| 1.90 | 6.05 | 2.51 | 8.00 | -17.77 | 22.43 | -67.19 | 108.81 | 0.9289 | -156.9 | -83.3 | |
| 3.07 | -5.00 | 4.60 | -5.00 | -20.28 | 19.86 | -69.76 | 111.18 | 0.9453 | -172.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
