SDO HMI 2011-05-30 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.40 | 46.05 | 16.68 | 37.42 | 15.69 | 38.81 | -50.27 | 69.24 | 0.7936 | -143.1 | -112.6 | |
|
previous
or next observation for the same group /

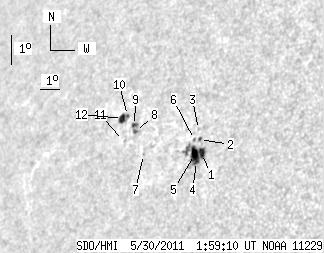

back to the solar disc SDO HMI 2011-05-30 01:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.60 | 26.73 | 3.61 | 21.11 | 15.33 | 40.33 | -48.74 | 69.23 | 0.7776 | -856.9 | -350.1 | |
| 1.17 | 1.63 | 0.93 | 1.28 | 15.78 | 40.10 | -48.98 | 68.75 | 0.7812 | -568.8 | -554.2 | |
| 0.00 | 1.17 | 0.00 | 0.93 | 16.09 | 39.94 | -49.13 | 68.40 | 0.7837 | -486.0 | -383.3 | |
| 0.27 | -1.00 | 0.21 | -1.00 | 15.08 | 40.17 | -48.90 | 69.60 | 0.7785 | -798.7 | 999999 | |
| 5.96 | -1.00 | 4.70 | -1.00 | 15.30 | 40.01 | -49.06 | 69.37 | 0.7809 | -755.0 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.93 | 15.78 | 39.85 | -49.22 | 68.82 | 0.7837 | -359.0 | -336.3 | |
| 0.00 | 1.17 | 0.00 | 0.98 | 15.34 | 37.46 | -51.61 | 70.05 | 0.8063 | 605.0 | 463.8 | |
| 1.63 | 5.69 | 1.38 | 4.84 | 16.08 | 36.78 | -52.29 | 69.34 | 0.8146 | 686.1 | 598.5 | |
| 2.08 | -8.00 | 1.77 | -8.00 | 16.27 | 36.66 | -52.41 | 69.14 | 0.8162 | 634.4 | 999999 | |
| 0.36 | 7.95 | 0.31 | 6.89 | 16.59 | 36.16 | -52.91 | 68.89 | 0.8216 | 641.8 | 453.3 | |
| 0.00 | 0.54 | 0.00 | 0.46 | 15.80 | 36.26 | -52.81 | 69.81 | 0.8189 | 411.0 | 427.2 | |
| 4.33 | -10.00 | 3.77 | -10.00 | 16.50 | 35.94 | -53.14 | 69.06 | 0.8235 | 480.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
