SDO HMI 2011-05-30 02:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.94 | 147.36 | 48.81 | 201.61 | -19.64 | 20.89 | -67.63 | 110.76 | 0.9326 | 20.4 | 42.8 | |
|
previous
or next observation for the same group /

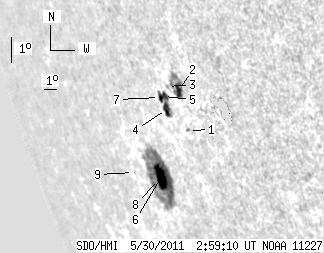

back to the solar disc SDO HMI 2011-05-30 02:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 1.54 | -18.82 | 23.63 | -64.89 | 110.24 | 0.9151 | -551.0 | -512.1 | |
| 6.05 | 20.05 | 7.28 | 24.16 | -17.54 | 23.77 | -64.75 | 108.87 | 0.9130 | -627.0 | -255.9 | |
| 0.00 | 1.26 | 0.00 | 1.57 | -17.41 | 23.03 | -65.49 | 108.62 | 0.9179 | 285.0 | 243.3 | |
| 7.13 | 18.69 | 9.05 | 23.67 | -18.13 | 22.42 | -66.10 | 109.33 | 0.9224 | -542.5 | -418.3 | |
| 5.42 | -4.00 | 6.84 | -4.00 | -17.72 | 22.49 | -66.03 | 108.89 | 0.9216 | -354.9 | 999999 | |
| 14.00 | 105.38 | 19.69 | 149.54 | -20.26 | 20.22 | -68.30 | 111.34 | 0.9373 | 702.9 | 110.0 | |
| 1.63 | -4.00 | 2.08 | -4.00 | -17.75 | 22.15 | -66.37 | 108.88 | 0.9238 | 188.2 | 999999 | |
| 2.71 | -6.00 | 3.87 | -6.00 | -20.35 | 19.87 | -68.65 | 111.39 | 0.9394 | -208.4 | 999999 | |
| 0.00 | 0.72 | 0.00 | 1.13 | -20.10 | 17.76 | -70.76 | 110.89 | 0.9504 | -203.0 | -196.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
