SDO HMI 2011-05-30 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.08 | 13.35 | 0.62 | 7.71 | -16.14 | 114.52 | 27.10 | 238.70 | 0.5126 | 33.2 | -3.7 | |
|
previous
or next observation for the same group /

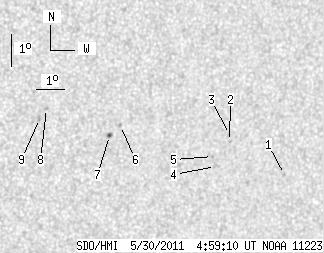

back to the solar disc SDO HMI 2011-05-30 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.77 | -17.17 | 119.38 | 31.95 | 240.86 | 0.5811 | 611.0 | 458.4 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -16.14 | 117.16 | 29.73 | 240.97 | 0.5470 | 758.0 | 664.1 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -15.92 | 117.12 | 29.70 | 241.31 | 0.5452 | 657.0 | 560.1 | |
| 0.00 | 2.71 | 0.00 | 1.60 | -16.93 | 116.78 | 29.36 | 239.37 | 0.5471 | 548.0 | 456.6 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -16.62 | 116.62 | 29.19 | 239.77 | 0.5431 | 507.0 | 551.4 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -15.66 | 113.19 | 25.76 | 238.56 | 0.4925 | -850.0 | -624.4 | |
| 1.08 | 1.99 | 0.62 | 1.13 | -15.98 | 112.84 | 25.42 | 237.67 | 0.4904 | -715.6 | -623.1 | |
| 0.00 | 1.35 | 0.00 | 0.75 | -15.14 | 110.56 | 23.13 | 236.94 | 0.4543 | -749.0 | -642.7 | |
| 0.00 | 2.26 | 0.00 | 1.25 | -15.46 | 110.35 | 22.93 | 236.12 | 0.4542 | -752.0 | -594.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
