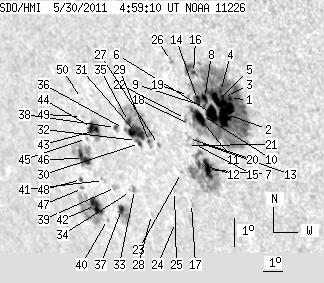

SDO HMI 2011-05-30 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 139.54 | 657.99 | 116.86 | 542.61 | -20.76 | 36.90 | -50.52 | 115.57 | 0.8009 | 136.0 | 146.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-30 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.63 | 348.25 | 1.25 | 271.04 | -19.58 | 40.20 | -47.22 | 115.15 | 0.7662 | 1335.9 | 399.0 | |
| 20.23 | -1.00 | 15.69 | -1.00 | -20.09 | 39.86 | -47.57 | 115.67 | 0.7713 | 1149.3 | 999999 | |
| 0.99 | -1.00 | 0.77 | -1.00 | -19.54 | 39.93 | -47.49 | 115.01 | 0.7689 | 1160.5 | 999999 | |
| 0.81 | -1.00 | 0.63 | -1.00 | -19.35 | 39.86 | -47.56 | 114.75 | 0.7690 | 1045.1 | 999999 | |
| 10.30 | -1.00 | 8.00 | -1.00 | -19.63 | 39.60 | -47.82 | 115.02 | 0.7725 | 1057.2 | 999999 | |
| 12.10 | -1.00 | 9.51 | -1.00 | -20.05 | 39.14 | -48.28 | 115.38 | 0.7783 | 753.4 | 999999 | |
| 10.12 | 77.04 | 8.19 | 62.67 | -21.86 | 38.15 | -49.27 | 117.26 | 0.7934 | 737.0 | 86.7 | |
| 4.15 | -1.00 | 3.26 | -1.00 | -19.56 | 39.00 | -48.42 | 114.73 | 0.7783 | 744.0 | 999999 | |
| 0.99 | -1.00 | 0.78 | -1.00 | -19.82 | 38.90 | -48.53 | 115.02 | 0.7801 | 512.0 | 999999 | |
| 0.27 | -1.00 | 0.21 | -1.00 | -20.11 | 38.68 | -48.74 | 115.30 | 0.7831 | -34.0 | 999999 | |
| 9.57 | -1.00 | 7.62 | -1.00 | -20.17 | 38.50 | -48.92 | 115.32 | 0.7850 | 572.1 | 999999 | |
| 1.63 | -7.00 | 1.32 | -7.00 | -21.69 | 37.82 | -49.60 | 116.95 | 0.7960 | 287.2 | 999999 | |
| 0.00 | 3.61 | 0.00 | 2.91 | -20.98 | 38.10 | -49.32 | 116.18 | 0.7913 | 699.0 | 523.3 | |
| 3.79 | -1.00 | 3.00 | -1.00 | -19.59 | 38.65 | -48.78 | 114.65 | 0.7819 | 534.0 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -21.04 | 37.87 | -49.55 | 116.18 | 0.7936 | 303.0 | 339.7 | |
| 1.63 | -1.00 | 1.28 | -1.00 | -18.73 | 38.79 | -48.63 | 113.62 | 0.7780 | 457.8 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.59 | -22.96 | 36.79 | -50.64 | 118.12 | 0.8094 | -579.0 | -527.0 | |
| 0.00 | 1.26 | 0.00 | 1.02 | -20.39 | 37.91 | -49.51 | 115.40 | 0.7914 | 232.0 | 174.9 | |
| 0.00 | 1.90 | 0.00 | 1.51 | -19.46 | 38.26 | -49.17 | 114.37 | 0.7854 | 311.0 | 205.8 | |
| 0.00 | 1.90 | 0.00 | 1.54 | -20.84 | 37.66 | -49.76 | 115.87 | 0.7951 | 271.0 | 155.7 | |
| 0.00 | 1.08 | 0.00 | 0.89 | -21.07 | 37.50 | -49.92 | 116.09 | 0.7972 | -301.0 | -226.3 | |
| 0.00 | 2.26 | 0.00 | 1.82 | -20.20 | 37.79 | -49.63 | 115.13 | 0.7920 | 170.0 | 62.3 | |
| 0.00 | 0.90 | 0.00 | 0.75 | -21.94 | 36.78 | -50.64 | 116.91 | 0.8065 | 307.0 | 190.2 | |
| 0.00 | 0.72 | 0.00 | 0.62 | -23.57 | 35.60 | -51.82 | 118.47 | 0.8217 | 341.0 | 316.6 | |
| 0.00 | 1.08 | 0.00 | 0.92 | -22.55 | 36.10 | -51.32 | 117.43 | 0.8144 | 475.0 | 357.2 | |
| 0.00 | 2.62 | 0.00 | 2.09 | -18.33 | 37.82 | -49.61 | 112.84 | 0.7867 | 528.0 | 414.1 | |
| 0.00 | 1.54 | 0.00 | 1.29 | -21.02 | 36.03 | -51.39 | 115.58 | 0.8109 | -783.0 | -728.7 | |
| 0.00 | 0.90 | 0.00 | 0.80 | -23.29 | 34.45 | -52.97 | 117.79 | 0.8310 | -608.0 | -476.2 | |
| 0.72 | 3.25 | 0.61 | 2.76 | -20.92 | 35.61 | -51.82 | 115.33 | 0.8145 | -800.0 | -594.1 | |
| 1.90 | 71.53 | 1.63 | 61.19 | -20.97 | 35.04 | -52.38 | 115.24 | 0.8198 | 207.6 | -359.4 | |
| 15.90 | -30.00 | 13.64 | -30.00 | -20.62 | 35.06 | -52.36 | 114.82 | 0.8188 | -736.2 | 999999 | |
| 1.45 | -30.00 | 1.25 | -30.00 | -20.88 | 34.93 | -52.49 | 115.09 | 0.8206 | -350.2 | 999999 | |
| 0.00 | 2.53 | 0.00 | 2.25 | -22.46 | 33.98 | -53.44 | 116.69 | 0.8329 | -635.0 | -591.9 | |
| 0.00 | 0.54 | 0.00 | 0.49 | -22.53 | 33.72 | -53.70 | 116.69 | 0.8353 | -354.0 | -334.5 | |
| 3.16 | -30.00 | 2.72 | -30.00 | -20.26 | 34.81 | -52.61 | 114.33 | 0.8202 | -455.7 | 999999 | |
| 0.36 | -30.00 | 0.31 | -30.00 | -20.48 | 34.43 | -52.99 | 114.49 | 0.8242 | -157.0 | 999999 | |
| 3.97 | 18.33 | 3.65 | 16.82 | -23.11 | 32.87 | -54.55 | 117.12 | 0.8439 | -720.4 | -477.0 | |
| 1.72 | 2.80 | 1.51 | 2.46 | -20.44 | 34.01 | -53.41 | 114.33 | 0.8278 | -248.5 | -202.1 | |
| 0.00 | 3.70 | 0.00 | 3.38 | -22.39 | 32.96 | -54.47 | 116.31 | 0.8415 | -732.0 | -584.1 | |
| 0.00 | 1.26 | 0.00 | 1.19 | -23.43 | 31.86 | -55.56 | 117.21 | 0.8530 | -569.0 | -466.8 | |
| 0.00 | 2.71 | 0.00 | 2.50 | -22.15 | 32.41 | -55.02 | 115.89 | 0.8456 | -666.0 | -569.4 | |
| 11.92 | 47.41 | 11.33 | 45.46 | -22.96 | 31.45 | -55.98 | 116.57 | 0.8553 | -724.8 | 28.2 | |
| 2.62 | 18.24 | 2.36 | 16.49 | -20.53 | 32.86 | -54.57 | 114.13 | 0.8382 | 545.2 | 195.0 | |
| 5.60 | -43.00 | 5.07 | -43.00 | -20.43 | 32.68 | -54.74 | 113.97 | 0.8395 | -520.4 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.91 | -20.78 | 32.21 | -55.21 | 114.26 | 0.8443 | -543.0 | -423.7 | |
| 10.12 | 32.33 | 9.46 | 30.20 | -21.42 | 31.67 | -55.75 | 114.87 | 0.8502 | -572.5 | -209.8 | |
| 0.81 | 1.35 | 0.78 | 1.30 | -22.40 | 31.02 | -56.40 | 115.82 | 0.8575 | -227.1 | -94.3 | |
| 1.08 | 1.99 | 1.03 | 1.89 | -22.10 | 31.15 | -56.27 | 115.52 | 0.8559 | -269.2 | -311.7 | |
| 0.00 | 0.72 | 0.00 | 0.66 | -20.07 | 32.31 | -55.12 | 113.46 | 0.8420 | -400.0 | -358.0 | |
| 0.00 | 1.08 | 0.00 | 0.98 | -19.49 | 32.60 | -54.82 | 112.86 | 0.8382 | -422.0 | -392.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
