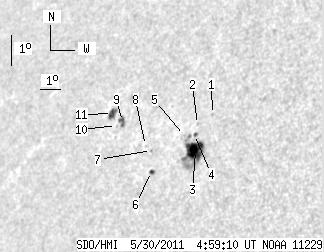

SDO HMI 2011-05-30 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.77 | 66.10 | 27.98 | 51.43 | 15.58 | 39.24 | -48.18 | 68.75 | 0.7720 | -212.7 | -19.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-30 04:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.48 | 16.43 | 40.78 | -46.64 | 67.17 | 0.7589 | 398.0 | 278.6 | |
| 0.00 | 1.17 | 0.00 | 0.90 | 16.12 | 40.18 | -47.24 | 67.77 | 0.7642 | -360.0 | -371.2 | |
| 22.67 | 43.62 | 17.22 | 33.18 | 15.30 | 40.34 | -47.08 | 68.77 | 0.7601 | -814.1 | -116.3 | |
| 0.81 | 1.72 | 0.62 | 1.31 | 15.80 | 40.14 | -47.28 | 68.19 | 0.7637 | -476.9 | -522.7 | |
| 0.00 | 0.99 | 0.00 | 0.77 | 15.78 | 39.68 | -47.74 | 68.37 | 0.7685 | -276.0 | -219.5 | |
| 1.81 | 1.99 | 1.42 | 1.56 | 14.66 | 38.45 | -48.97 | 70.16 | 0.7781 | 577.5 | 411.0 | |
| 0.00 | 0.90 | 0.00 | 0.71 | 15.32 | 38.24 | -49.18 | 69.39 | 0.7820 | 522.0 | 500.8 | |
| 0.00 | 0.81 | 0.00 | 0.65 | 15.49 | 37.90 | -49.52 | 69.29 | 0.7859 | 535.0 | 431.8 | |
| 4.79 | 5.69 | 3.95 | 4.70 | 16.27 | 36.49 | -50.93 | 68.75 | 0.8019 | 665.1 | 605.5 | |
| 0.00 | 0.81 | 0.00 | 0.67 | 16.14 | 36.23 | -51.19 | 68.97 | 0.8041 | 370.0 | 360.2 | |
| 5.69 | 7.77 | 4.77 | 6.50 | 16.53 | 35.88 | -51.54 | 68.60 | 0.8084 | 513.9 | 431.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
