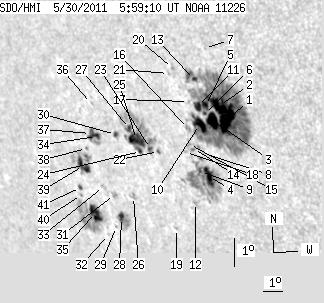

SDO HMI 2011-05-30 05:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 142.44 | 641.60 | 117.53 | 523.23 | -20.75 | 36.93 | -49.94 | 115.74 | 0.7955 | 187.1 | 147.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-30 05:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.12 | 338.42 | 17.74 | 260.89 | -20.03 | 39.85 | -47.02 | 115.79 | 0.7657 | 1189.0 | 398.9 | |
| 14.18 | -1.00 | 10.89 | -1.00 | -19.57 | 39.65 | -47.23 | 115.15 | 0.7663 | 1075.8 | 999999 | |
| 12.55 | -1.00 | 9.76 | -1.00 | -20.05 | 39.12 | -47.75 | 115.56 | 0.7731 | 784.2 | 999999 | |
| 10.03 | 79.93 | 8.03 | 64.41 | -21.86 | 38.14 | -48.73 | 117.45 | 0.7883 | 773.8 | 68.6 | |
| 3.52 | -1.00 | 2.74 | -1.00 | -19.57 | 38.98 | -47.90 | 114.91 | 0.7731 | 764.2 | 999999 | |
| 1.35 | -1.00 | 1.06 | -1.00 | -19.82 | 38.83 | -48.05 | 115.18 | 0.7754 | 477.0 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.55 | -17.75 | 39.60 | -47.27 | 112.82 | 0.7613 | 502.0 | 438.6 | |
| 0.00 | 0.63 | 0.00 | 0.50 | -21.11 | 38.23 | -48.64 | 116.57 | 0.7851 | 602.0 | 484.9 | |
| 1.45 | -4.00 | 1.16 | -4.00 | -21.69 | 37.82 | -49.05 | 117.14 | 0.7909 | 339.0 | 999999 | |
| 10.03 | -1.00 | 7.90 | -1.00 | -20.17 | 38.44 | -48.44 | 115.49 | 0.7803 | 557.7 | 999999 | |
| 4.79 | -1.00 | 3.75 | -1.00 | -19.59 | 38.58 | -48.30 | 114.81 | 0.7772 | 453.6 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.78 | -22.70 | 37.08 | -49.79 | 118.10 | 0.8009 | -487.0 | -483.8 | |
| 1.63 | -1.00 | 1.26 | -1.00 | -18.73 | 38.77 | -48.10 | 113.80 | 0.7727 | 478.8 | 999999 | |
| 0.00 | 2.62 | 0.00 | 2.10 | -20.94 | 37.81 | -49.06 | 116.22 | 0.7887 | 482.0 | 426.2 | |
| 0.00 | 1.72 | 0.00 | 1.38 | -20.81 | 37.67 | -49.21 | 116.02 | 0.7897 | 221.0 | 165.6 | |
| 0.00 | 3.61 | 0.00 | 2.89 | -20.30 | 37.84 | -49.03 | 115.44 | 0.7865 | 360.0 | 236.9 | |
| 0.00 | 1.17 | 0.00 | 0.93 | -19.43 | 38.20 | -48.67 | 114.49 | 0.7804 | 425.0 | 322.3 | |
| 0.00 | 0.81 | 0.00 | 0.66 | -21.07 | 37.35 | -49.52 | 116.23 | 0.7935 | -376.0 | -308.7 | |
| 0.00 | 0.99 | 0.00 | 0.85 | -23.54 | 35.65 | -51.22 | 118.63 | 0.8164 | 445.0 | 379.3 | |
| 0.00 | 1.72 | 0.00 | 1.36 | -18.37 | 37.84 | -49.04 | 113.06 | 0.7811 | 594.0 | 455.3 | |
| 0.00 | 0.99 | 0.00 | 0.79 | -18.52 | 37.58 | -49.29 | 113.17 | 0.7841 | 246.0 | 204.9 | |
| 1.26 | 1.99 | 1.05 | 1.66 | -21.02 | 35.99 | -50.88 | 115.74 | 0.8062 | -693.1 | -572.0 | |
| 1.45 | 75.96 | 1.21 | 64.18 | -20.92 | 35.62 | -51.25 | 115.51 | 0.8093 | -719.4 | -366.2 | |
| 1.63 | -23.00 | 1.38 | -23.00 | -21.01 | 35.05 | -51.82 | 115.45 | 0.8148 | 192.8 | 999999 | |
| 15.17 | -23.00 | 12.87 | -23.00 | -20.62 | 35.03 | -51.84 | 114.98 | 0.8140 | -752.2 | 999999 | |
| 0.00 | 3.52 | 0.00 | 3.10 | -22.47 | 33.92 | -52.96 | 116.83 | 0.8287 | -662.0 | -530.9 | |
| 2.71 | -23.00 | 2.31 | -23.00 | -20.26 | 34.83 | -52.04 | 114.49 | 0.8150 | -476.1 | 999999 | |
| 3.88 | 14.09 | 3.52 | 12.76 | -23.15 | 32.86 | -54.01 | 117.32 | 0.8395 | -760.5 | -515.7 | |
| 0.00 | 0.63 | 0.00 | 0.58 | -23.44 | 32.40 | -54.47 | 117.52 | 0.8441 | -315.0 | -290.7 | |
| 2.53 | 3.34 | 2.19 | 2.90 | -20.45 | 33.99 | -52.88 | 114.48 | 0.8231 | -259.8 | -303.8 | |
| 0.00 | 3.61 | 0.00 | 3.26 | -22.39 | 32.90 | -53.97 | 116.46 | 0.8373 | -771.0 | -634.4 | |
| 0.00 | 0.72 | 0.00 | 0.68 | -23.69 | 31.78 | -55.10 | 117.65 | 0.8498 | -391.0 | -316.0 | |
| 0.00 | 2.71 | 0.00 | 2.46 | -22.12 | 32.44 | -54.44 | 116.02 | 0.8407 | -693.0 | -553.6 | |
| 3.16 | 15.26 | 2.81 | 13.62 | -20.50 | 32.93 | -53.95 | 114.26 | 0.8327 | 502.4 | 272.7 | |
| 11.74 | 50.04 | 11.00 | 47.37 | -22.96 | 31.47 | -55.40 | 116.73 | 0.8507 | -729.8 | 64.2 | |
| 0.00 | 0.99 | 0.00 | 0.87 | -19.44 | 33.18 | -53.69 | 113.07 | 0.8281 | -482.0 | -379.4 | |
| 4.52 | -34.00 | 4.04 | -34.00 | -20.40 | 32.65 | -54.23 | 114.07 | 0.8350 | -506.2 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.31 | -20.88 | 32.16 | -54.71 | 114.51 | 0.8402 | -543.0 | -478.4 | |
| 9.84 | 27.82 | 9.08 | 25.65 | -21.43 | 31.69 | -55.18 | 115.02 | 0.8455 | -575.7 | -219.9 | |
| 0.00 | 1.26 | 0.00 | 1.19 | -22.37 | 31.02 | -55.86 | 115.93 | 0.8531 | -233.0 | -135.9 | |
| 1.90 | 2.71 | 1.78 | 2.55 | -22.14 | 31.10 | -55.78 | 115.69 | 0.8519 | -289.4 | -282.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
