SDO HMI 2011-05-30 06:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 156.70 | 650.26 | 126.56 | 524.78 | -20.74 | 36.90 | -49.43 | 115.89 | 0.7905 | 218.2 | 117.1 | |
|
previous
or next observation for the same group /

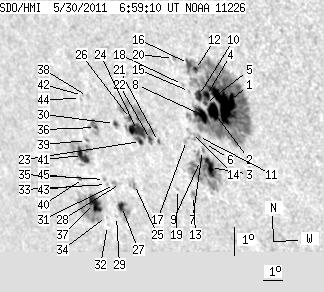

back to the solar disc SDO HMI 2011-05-30 06:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.96 | 347.81 | 36.48 | 265.65 | -19.86 | 39.70 | -46.63 | 115.73 | 0.7611 | 1116.9 | 383.6 | |
| 14.27 | -1.00 | 10.99 | -1.00 | -20.08 | 39.09 | -47.23 | 115.79 | 0.7680 | 765.4 | 999999 | |
| 9.75 | 75.23 | 7.73 | 60.05 | -21.89 | 38.18 | -48.15 | 117.70 | 0.7829 | 787.0 | 51.0 | |
| 4.15 | -1.00 | 3.20 | -1.00 | -19.57 | 38.96 | -47.37 | 115.09 | 0.7677 | 756.8 | 999999 | |
| 1.81 | -1.00 | 1.40 | -1.00 | -19.82 | 38.81 | -47.52 | 115.37 | 0.7700 | 416.4 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.57 | -21.11 | 38.23 | -48.10 | 116.76 | 0.7799 | 499.0 | 474.1 | |
| 0.00 | 1.45 | 0.00 | 1.14 | -21.34 | 38.03 | -48.29 | 116.97 | 0.7825 | 707.0 | 575.6 | |
| 11.65 | -1.00 | 9.09 | -1.00 | -20.17 | 38.43 | -47.90 | 115.67 | 0.7750 | 554.4 | 999999 | |
| 2.17 | -3.00 | 1.73 | -3.00 | -21.66 | 37.79 | -48.54 | 117.28 | 0.7859 | 370.3 | 999999 | |
| 5.51 | -1.00 | 4.27 | -1.00 | -19.56 | 38.58 | -47.75 | 114.96 | 0.7716 | 442.0 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.71 | -20.88 | 38.03 | -48.29 | 116.41 | 0.7811 | 771.0 | 499.6 | |
| 2.17 | -1.00 | 1.67 | -1.00 | -18.73 | 38.75 | -47.57 | 113.97 | 0.7673 | 462.8 | 999999 | |
| 0.00 | 3.79 | 0.00 | 3.10 | -22.80 | 36.90 | -49.43 | 118.35 | 0.7979 | -727.0 | -562.9 | |
| 0.00 | 4.24 | 0.00 | 3.37 | -20.78 | 37.73 | -48.59 | 116.19 | 0.7837 | 360.0 | 290.1 | |
| 0.00 | 1.35 | 0.00 | 1.06 | -19.43 | 38.19 | -48.13 | 114.67 | 0.7751 | 349.0 | 290.6 | |
| 3.97 | -1.00 | 3.07 | -1.00 | -18.53 | 38.49 | -47.84 | 113.64 | 0.7694 | -499.2 | 999999 | |
| 0.00 | 2.89 | 0.00 | 2.31 | -21.00 | 37.39 | -48.94 | 116.35 | 0.7877 | -231.0 | -205.3 | |
| 0.00 | 0.90 | 0.00 | 0.71 | -19.20 | 37.94 | -48.38 | 114.30 | 0.7769 | 311.0 | 155.0 | |
| 0.00 | 0.54 | 0.00 | 0.45 | -22.59 | 36.18 | -50.15 | 117.86 | 0.8039 | 331.0 | 263.0 | |
| 0.00 | 1.45 | 0.00 | 1.13 | -18.37 | 37.83 | -48.50 | 113.23 | 0.7757 | 516.0 | 463.2 | |
| 1.35 | 2.35 | 1.12 | 1.93 | -21.02 | 35.96 | -50.36 | 115.91 | 0.8014 | -631.9 | -545.6 | |
| 1.63 | 73.88 | 1.35 | 61.75 | -20.95 | 35.58 | -50.74 | 115.71 | 0.8047 | -762.1 | -364.2 | |
| 1.99 | -22.00 | 1.67 | -22.00 | -21.01 | 35.03 | -51.29 | 115.61 | 0.8100 | 187.3 | 999999 | |
| 14.90 | -22.00 | 12.50 | -22.00 | -20.65 | 35.05 | -51.28 | 115.19 | 0.8089 | -750.7 | 999999 | |
| 0.00 | 2.98 | 0.00 | 2.59 | -22.40 | 34.01 | -52.32 | 116.95 | 0.8230 | -617.0 | -468.5 | |
| 1.99 | -22.00 | 1.67 | -22.00 | -20.26 | 34.87 | -51.46 | 114.66 | 0.8096 | -502.3 | 999999 | |
| 4.52 | 14.09 | 4.04 | 12.60 | -23.11 | 32.89 | -53.43 | 117.45 | 0.8345 | -758.8 | -452.5 | |
| 0.00 | 1.45 | 0.00 | 1.28 | -22.36 | 33.26 | -53.06 | 116.69 | 0.8294 | -525.0 | -428.9 | |
| 0.00 | 0.90 | 0.00 | 0.82 | -23.44 | 32.42 | -53.90 | 117.69 | 0.8394 | -405.0 | -350.2 | |
| 1.72 | 3.79 | 1.47 | 3.25 | -20.41 | 33.95 | -52.38 | 114.59 | 0.8185 | -345.4 | -299.9 | |
| 0.00 | 3.07 | 0.00 | 2.73 | -22.39 | 32.92 | -53.41 | 116.62 | 0.8325 | -763.0 | -657.9 | |
| 0.00 | 0.45 | 0.00 | 0.42 | -23.73 | 31.73 | -54.59 | 117.83 | 0.8458 | -410.0 | -319.2 | |
| 0.00 | 1.08 | 0.00 | 0.97 | -22.39 | 32.47 | -53.85 | 116.49 | 0.8363 | -609.0 | -567.8 | |
| 0.00 | 0.36 | 0.00 | 0.33 | -23.43 | 31.86 | -54.47 | 117.52 | 0.8441 | -498.0 | -449.2 | |
| 0.00 | 1.35 | 0.00 | 1.22 | -22.22 | 32.45 | -53.87 | 116.29 | 0.8361 | -665.0 | -617.1 | |
| 1.08 | 9.93 | 0.95 | 8.76 | -20.53 | 32.86 | -53.46 | 114.43 | 0.8286 | 445.4 | -59.4 | |
| 12.46 | 51.57 | 11.53 | 48.10 | -23.00 | 31.43 | -54.90 | 116.91 | 0.8466 | -736.2 | 28.2 | |
| 0.00 | 1.45 | 0.00 | 1.26 | -19.53 | 32.92 | -53.41 | 113.26 | 0.8258 | -188.0 | -201.8 | |
| 0.81 | 1.99 | 0.73 | 1.78 | -20.94 | 32.15 | -54.18 | 114.72 | 0.8358 | -584.0 | -436.8 | |
| 0.00 | 1.26 | 0.00 | 1.17 | -22.17 | 31.29 | -55.04 | 115.92 | 0.8459 | -497.0 | -423.0 | |
| 9.30 | 30.26 | 8.47 | 27.54 | -21.43 | 31.66 | -54.67 | 115.16 | 0.8411 | -566.0 | -228.3 | |
| 0.00 | 1.17 | 0.00 | 1.03 | -19.50 | 32.66 | -53.66 | 113.16 | 0.8280 | -539.0 | -444.8 | |
| 0.00 | 1.54 | 0.00 | 1.43 | -22.40 | 30.98 | -55.35 | 116.10 | 0.8490 | -274.0 | -152.3 | |
| 0.00 | 0.81 | 0.00 | 0.72 | -19.59 | 32.51 | -53.82 | 113.23 | 0.8296 | -371.0 | -315.9 | |
| 1.54 | 1.99 | 1.43 | 1.85 | -22.17 | 31.06 | -55.27 | 115.86 | 0.8478 | -310.1 | -285.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
