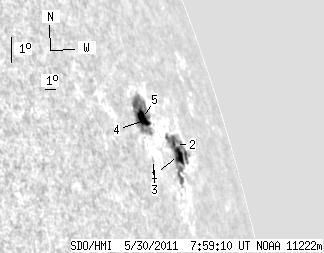

SDO HMI 2011-05-30 07:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.79 | 93.39 | 33.61 | 177.12 | 16.03 | 159.66 | 73.89 | 286.89 | 0.9659 | -98.3 | -90.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-30 07:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.49 | 47.69 | 17.43 | 98.23 | 15.54 | 160.98 | 75.21 | 286.26 | 0.9714 | -558.2 | -312.0 | |
| 0.45 | -1.00 | 0.92 | -1.00 | 15.89 | 160.98 | 75.21 | 286.62 | 0.9715 | -640.0 | 999999 | |
| 0.00 | 1.54 | 0.00 | 2.61 | 15.36 | 157.96 | 72.18 | 286.36 | 0.9580 | 139.0 | 112.9 | |
| 0.81 | 44.16 | 1.43 | 76.28 | 16.64 | 158.39 | 72.61 | 287.64 | 0.9607 | -127.1 | 191.6 | |
| 8.04 | -4.00 | 13.83 | -4.00 | 16.66 | 157.98 | 72.21 | 287.71 | 0.9588 | 503.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
