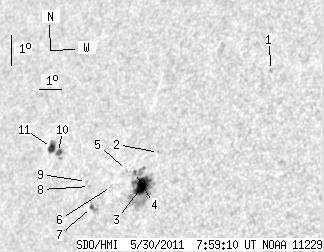

SDO HMI 2011-05-30 07:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.47 | 84.89 | 20.12 | 63.56 | 15.54 | 39.53 | -46.25 | 68.18 | 0.7515 | -137.9 | -105.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-30 07:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 1.07 | 18.91 | 45.06 | -40.72 | 61.48 | 0.7046 | 652.0 | 561.2 | |
| 0.00 | 1.08 | 0.00 | 0.80 | 16.33 | 40.89 | -44.88 | 66.68 | 0.7397 | 202.0 | 202.0 | |
| 16.08 | 57.35 | 11.82 | 42.15 | 15.29 | 40.47 | -45.31 | 68.19 | 0.7409 | -876.9 | -302.8 | |
| 0.00 | 2.08 | 0.00 | 1.54 | 15.70 | 39.99 | -45.79 | 67.82 | 0.7474 | -481.0 | -399.7 | |
| 0.00 | 0.36 | 0.00 | 0.27 | 15.77 | 39.61 | -46.17 | 67.87 | 0.7517 | -321.0 | -272.5 | |
| 0.00 | 0.99 | 0.00 | 0.75 | 15.27 | 39.06 | -46.71 | 68.69 | 0.7560 | 418.0 | 389.0 | |
| 1.81 | 5.78 | 1.38 | 4.39 | 14.62 | 38.33 | -47.45 | 69.77 | 0.7620 | 565.0 | 425.2 | |
| 0.00 | 1.17 | 0.00 | 0.90 | 15.29 | 38.04 | -47.74 | 69.01 | 0.7669 | 523.0 | 524.4 | |
| 0.00 | 1.17 | 0.00 | 0.91 | 15.45 | 37.84 | -47.93 | 68.87 | 0.7694 | 648.0 | 514.1 | |
| 2.98 | 5.15 | 2.39 | 4.13 | 16.39 | 36.19 | -49.59 | 68.21 | 0.7889 | 745.2 | 614.2 | |
| 5.60 | 8.22 | 4.53 | 6.65 | 16.55 | 35.78 | -50.00 | 68.14 | 0.7934 | 535.1 | 442.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
