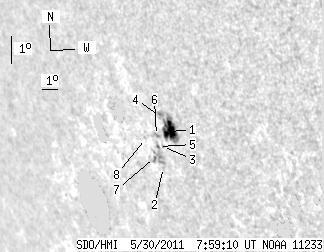

SDO HMI 2011-05-30 07:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.26 | 49.66 | 14.40 | 50.59 | -18.39 | 26.17 | -59.61 | 110.61 | 0.8764 | 532.1 | 326.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-30 07:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.01 | 24.84 | 12.04 | 24.88 | -18.15 | 26.74 | -59.04 | 110.44 | 0.8716 | 714.3 | 422.1 | |
| 0.00 | 1.26 | 0.00 | 1.32 | -19.29 | 25.69 | -60.09 | 111.53 | 0.8814 | 350.0 | 316.6 | |
| 0.00 | 1.08 | 0.00 | 1.11 | -18.62 | 26.03 | -59.75 | 110.84 | 0.8779 | 458.0 | 375.1 | |
| 0.00 | 3.79 | 0.00 | 3.83 | -17.66 | 26.43 | -59.34 | 109.83 | 0.8733 | -180.0 | -101.8 | |
| 1.17 | 2.62 | 1.22 | 2.71 | -18.61 | 25.77 | -60.01 | 110.79 | 0.8799 | 546.8 | 421.1 | |
| 0.00 | 2.98 | 0.00 | 3.07 | -18.26 | 25.84 | -59.93 | 110.41 | 0.8788 | 214.0 | 21.9 | |
| 1.08 | 11.92 | 1.14 | 12.43 | -18.96 | 25.30 | -60.48 | 111.10 | 0.8840 | 243.9 | 485.4 | |
| 0.00 | 1.17 | 0.00 | 1.24 | -18.35 | 25.08 | -60.70 | 110.37 | 0.8849 | -66.0 | -169.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
