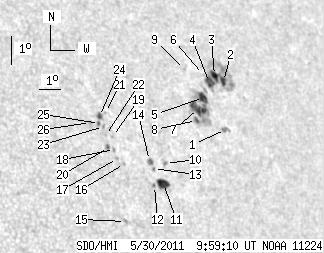

SDO HMI 2011-05-30 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.29 | 146.36 | 40.09 | 115.26 | 21.10 | 131.64 | 46.95 | 298.50 | 0.7774 | -161.7 | -124.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-30 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.15 | 0.00 | 3.33 | 20.47 | 133.02 | 48.34 | 297.18 | 0.7890 | -696.0 | -523.3 | |
| 3.70 | 51.02 | 3.04 | 41.86 | 22.05 | 133.62 | 48.94 | 298.84 | 0.8001 | -550.6 | -81.3 | |
| 4.79 | -2.00 | 3.91 | -2.00 | 22.24 | 133.26 | 48.58 | 299.21 | 0.7974 | -646.0 | 999999 | |
| 5.87 | -2.00 | 4.76 | -2.00 | 22.01 | 132.91 | 48.22 | 299.07 | 0.7933 | -776.0 | 999999 | |
| 6.59 | 51.84 | 5.26 | 41.10 | 21.51 | 132.39 | 47.71 | 298.67 | 0.7866 | -697.1 | -476.2 | |
| 0.00 | 0.36 | 0.00 | 0.29 | 22.27 | 132.73 | 48.05 | 299.45 | 0.7926 | -523.0 | -497.2 | |
| 12.64 | -5.00 | 9.99 | -5.00 | 21.14 | 131.99 | 47.31 | 298.39 | 0.7815 | -743.6 | 999999 | |
| 2.35 | -5.00 | 1.84 | -5.00 | 20.74 | 131.73 | 47.05 | 298.01 | 0.7775 | -736.5 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.22 | 22.42 | 131.87 | 47.19 | 299.98 | 0.7851 | -630.0 | -449.6 | |
| 0.00 | 2.08 | 0.00 | 1.56 | 19.32 | 129.73 | 45.05 | 297.06 | 0.7523 | 556.0 | 368.6 | |
| 8.85 | 10.20 | 6.56 | 7.57 | 18.67 | 129.42 | 44.74 | 296.37 | 0.7466 | 582.3 | 409.2 | |
| 0.00 | 1.44 | 0.00 | 1.06 | 18.60 | 128.99 | 44.31 | 296.46 | 0.7418 | 856.0 | 773.9 | |
| 0.00 | 1.44 | 0.00 | 1.07 | 19.15 | 129.13 | 44.45 | 297.10 | 0.7454 | 475.0 | 405.4 | |
| 1.44 | 3.52 | 1.07 | 2.61 | 19.41 | 129.04 | 44.35 | 297.47 | 0.7455 | 497.5 | 469.4 | |
| 0.00 | 1.81 | 0.00 | 1.28 | 17.42 | 127.34 | 42.66 | 295.64 | 0.7195 | -688.0 | -573.0 | |
| 0.00 | 1.26 | 0.00 | 0.92 | 19.30 | 127.88 | 43.20 | 297.84 | 0.7329 | 607.0 | 438.1 | |
| 0.00 | 1.35 | 0.00 | 0.98 | 19.46 | 127.62 | 42.94 | 298.16 | 0.7309 | 628.0 | 513.9 | |
| 0.00 | 1.72 | 0.00 | 1.24 | 19.75 | 127.59 | 42.90 | 298.55 | 0.7317 | 647.0 | 546.0 | |
| 0.00 | 0.99 | 0.00 | 0.72 | 20.17 | 127.64 | 42.96 | 299.07 | 0.7341 | 584.0 | 431.4 | |
| 1.63 | 1.90 | 1.17 | 1.37 | 19.81 | 127.34 | 42.66 | 298.74 | 0.7295 | 727.5 | 629.0 | |
| 0.00 | 1.08 | 0.00 | 0.79 | 20.95 | 127.61 | 42.92 | 300.08 | 0.7372 | 434.0 | 375.5 | |
| 0.00 | 1.08 | 0.00 | 0.78 | 20.20 | 127.34 | 42.66 | 299.24 | 0.7312 | 574.0 | 541.3 | |
| 0.00 | 1.44 | 0.00 | 1.05 | 20.49 | 127.35 | 42.67 | 299.61 | 0.7326 | 855.0 | 681.6 | |
| 2.26 | 3.16 | 1.64 | 2.30 | 20.82 | 127.29 | 42.61 | 300.06 | 0.7334 | 667.2 | 694.5 | |
| 1.17 | 1.63 | 0.85 | 1.18 | 20.59 | 127.21 | 42.53 | 299.80 | 0.7315 | 756.4 | 709.0 | |
| 0.00 | 1.35 | 0.00 | 0.98 | 20.62 | 126.82 | 42.14 | 300.03 | 0.7276 | 818.0 | 652.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
