SDO HMI 2011-05-30 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.16 | 89.58 | 22.36 | 65.44 | 15.62 | 39.93 | -44.75 | 67.54 | 0.7356 | -262.4 | -135.7 | |
|
previous
or next observation for the same group /

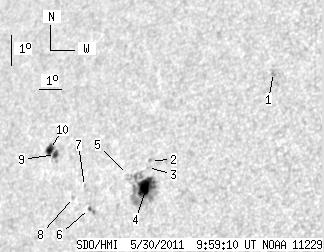

back to the solar disc SDO HMI 2011-05-30 09:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.34 | 0.00 | 2.29 | 18.93 | 45.06 | -39.62 | 60.89 | 0.6927 | 667.0 | 592.9 | |
| 0.00 | 1.35 | 0.00 | 0.98 | 16.16 | 40.56 | -44.12 | 66.61 | 0.7308 | -597.0 | -543.3 | |
| 0.00 | 0.90 | 0.00 | 0.65 | 15.94 | 40.49 | -44.19 | 66.93 | 0.7308 | -501.0 | -400.1 | |
| 20.14 | 65.93 | 14.49 | 47.52 | 15.34 | 40.61 | -44.07 | 67.68 | 0.7274 | -855.0 | -262.7 | |
| 0.00 | 0.99 | 0.00 | 0.73 | 15.73 | 39.66 | -45.02 | 67.52 | 0.7392 | -240.0 | -146.7 | |
| 1.17 | 3.25 | 0.88 | 2.42 | 14.67 | 38.24 | -46.45 | 69.39 | 0.7513 | 612.8 | 547.9 | |
| 0.00 | 0.81 | 0.00 | 0.62 | 15.37 | 37.80 | -46.88 | 68.63 | 0.7580 | 543.0 | 471.8 | |
| 0.00 | 1.54 | 0.00 | 1.17 | 15.03 | 37.39 | -47.29 | 69.20 | 0.7614 | 288.0 | 169.0 | |
| 3.07 | 11.47 | 2.41 | 9.06 | 16.41 | 36.11 | -48.57 | 67.88 | 0.7787 | 757.1 | 503.6 | |
| 5.78 | -9.00 | 4.58 | -9.00 | 16.57 | 35.76 | -48.92 | 67.78 | 0.7827 | 529.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
