SDO HMI 2011-05-30 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.57 | 166.78 | 41.45 | 194.48 | -19.71 | 20.75 | -63.38 | 111.43 | 0.9057 | 70.2 | 26.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-30 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

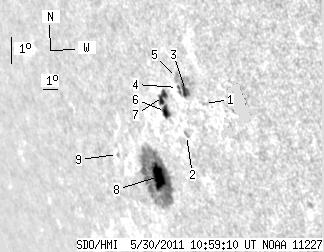

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 1.19 | -18.01 | 24.74 | -59.40 | 110.22 | 0.8743 | -370.0 | -353.2 | |
| 0.00 | 2.35 | 0.00 | 2.52 | -19.01 | 22.97 | -61.16 | 111.04 | 0.8893 | -591.0 | -533.5 | |
| 5.60 | 17.88 | 5.84 | 18.62 | -17.58 | 23.76 | -60.38 | 109.57 | 0.8814 | -621.2 | -337.0 | |
| 0.90 | -3.00 | 0.95 | -3.00 | -17.48 | 23.29 | -60.85 | 109.38 | 0.8849 | -148.5 | 999999 | |
| 0.00 | 3.34 | 0.00 | 3.51 | -17.16 | 23.40 | -60.73 | 109.05 | 0.8837 | 50.0 | 31.6 | |
| 5.96 | 18.24 | 6.57 | 20.05 | -18.23 | 22.03 | -62.10 | 110.02 | 0.8953 | -520.9 | -269.1 | |
| 6.41 | -6.00 | 7.02 | -6.00 | -17.75 | 22.19 | -61.95 | 109.51 | 0.8936 | -397.4 | 999999 | |
| 17.70 | 122.54 | 21.07 | 146.94 | -20.30 | 20.09 | -64.04 | 111.98 | 0.9111 | 688.3 | 95.3 | |
| 0.00 | 1.26 | 0.00 | 1.65 | -19.55 | 17.47 | -66.66 | 110.81 | 0.9272 | -419.0 | -315.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
