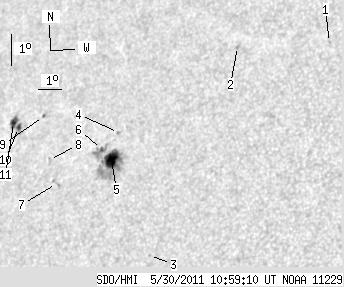

SDO HMI 2011-05-30 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.56 | 87.41 | 18.08 | 63.16 | 15.63 | 39.94 | -44.20 | 67.31 | 0.7295 | -195.6 | -144.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-30 10:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.76 | 18.99 | 48.69 | -35.45 | 58.40 | 0.6461 | 501.0 | 398.5 | |
| 0.00 | 2.08 | 0.00 | 1.41 | 18.90 | 44.98 | -39.15 | 60.70 | 0.6873 | 675.0 | 585.6 | |
| 0.00 | 0.90 | 0.00 | 0.61 | 12.29 | 42.90 | -41.24 | 70.80 | 0.6843 | -591.0 | -457.7 | |
| 0.00 | 1.35 | 0.00 | 0.97 | 16.19 | 40.67 | -43.47 | 66.32 | 0.7236 | -691.0 | -575.3 | |
| 15.08 | 65.20 | 10.75 | 46.54 | 15.33 | 40.59 | -43.54 | 67.49 | 0.7214 | -877.1 | -298.9 | |
| 1.26 | -5.00 | 0.91 | -5.00 | 15.66 | 40.07 | -44.07 | 67.26 | 0.7284 | -457.4 | 999999 | |
| 0.00 | 2.44 | 0.00 | 1.80 | 14.60 | 38.35 | -45.79 | 69.26 | 0.7440 | 689.0 | 549.3 | |
| 0.00 | 1.35 | 0.00 | 1.01 | 15.37 | 37.81 | -46.32 | 68.45 | 0.7520 | 703.0 | 561.7 | |
| 0.81 | 1.54 | 0.62 | 1.17 | 16.74 | 37.11 | -47.02 | 66.94 | 0.7637 | 545.2 | 426.2 | |
| 1.90 | 11.38 | 1.48 | 8.89 | 16.41 | 36.04 | -48.09 | 67.73 | 0.7737 | 790.8 | 585.0 | |
| 5.51 | -10.00 | 4.32 | -10.00 | 16.57 | 35.75 | -48.38 | 67.62 | 0.7772 | 541.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
