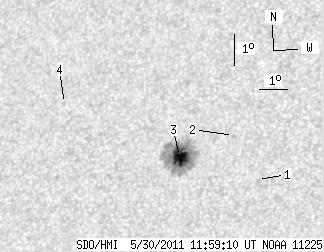

SDO HMI 2011-05-30 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.41 | 91.73 | 11.66 | 52.44 | 16.77 | 59.10 | -24.49 | 52.71 | 0.5007 | -946.4 | -448.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-30 11:59:10 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.35 | 15.99 | 61.91 | -21.67 | 50.81 | 0.4599 | -689.0 | -607.7 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 17.40 | 60.92 | -22.67 | 49.62 | 0.4847 | 711.0 | 551.1 | |
| 20.41 | 89.03 | 11.66 | 50.87 | 16.74 | 59.13 | -24.46 | 52.73 | 0.5001 | -1134.0 | -457.6 | |
| 0.00 | 1.26 | 0.00 | 0.76 | 18.48 | 54.74 | -28.84 | 54.21 | 0.5661 | -674.0 | -506.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
